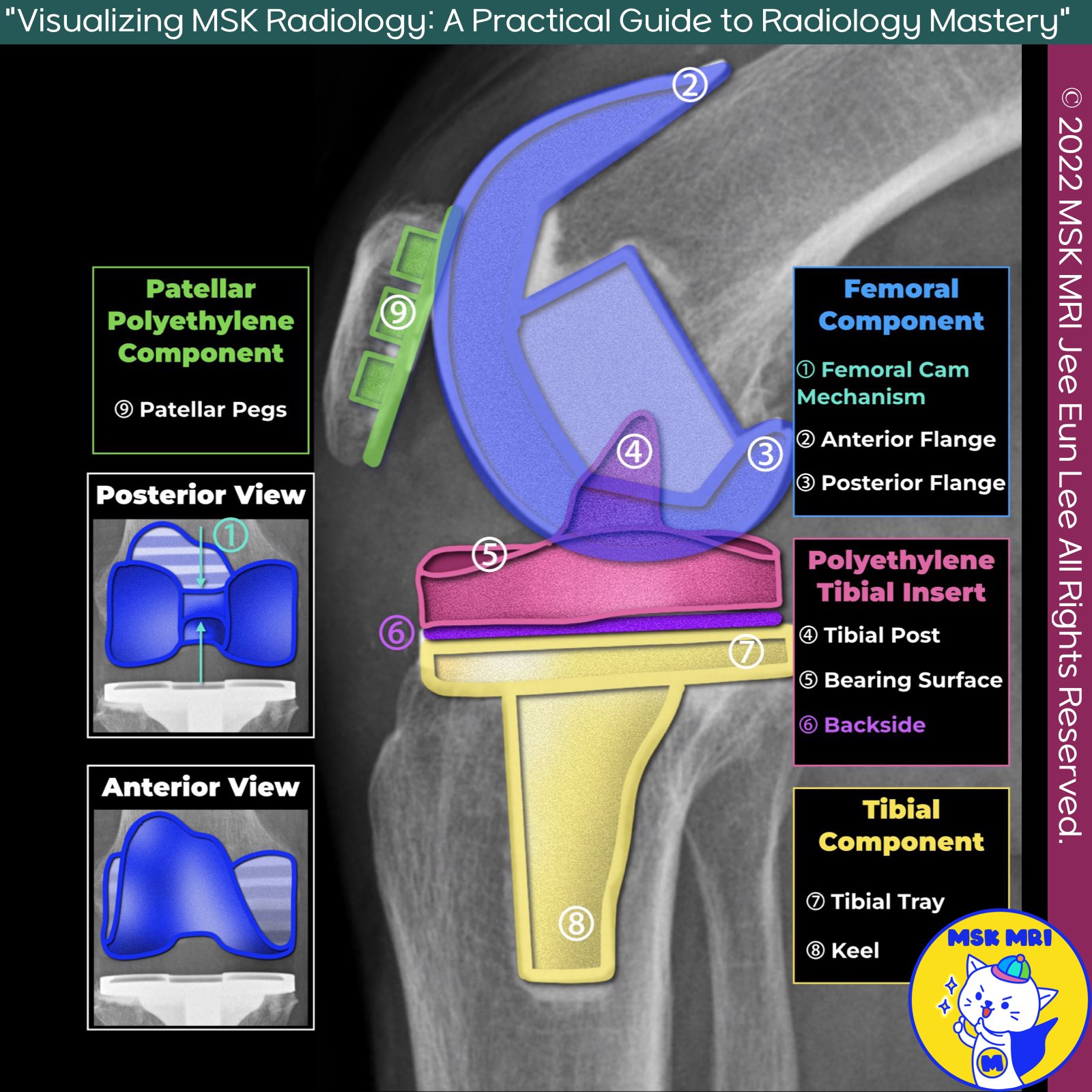

(Fig 5-D.02) Components of Posterior Stabilized Total Knee Arthroplasty

https://youtu.be/0Eab0bLhdhc



https://youtu.be/POoP1plqOoI



👉 Click the link below and request access—I’ll approve it for you shortly!
https://www.notion.so/MSKMRI-KNEE-b6cbb1e1bc4741b681ecf6a40159a531?pvs=4
==============================================

✨ Join the channel to enjoy the benefits! 🚀
https://www.youtube.com/channel/UC4bw7o0l2rhxn1GJZGDmT9w/join
==============================================

👉 "Click the link to purchase on Amazon 🎉📚"
[Visualizing MSK Radiology: A Practical Guide to Radiology Mastery]
https://www.amazon.com/dp/B0DJGMHMFS
==============================================

MSK MRI Jee Eun Lee

Visualizing MSK Radiology: A Practical Guide to Radiology Mastery

👉 Click the link below and request access

📌 Components of Posterior Stabilized Total Knee Arthroplasty

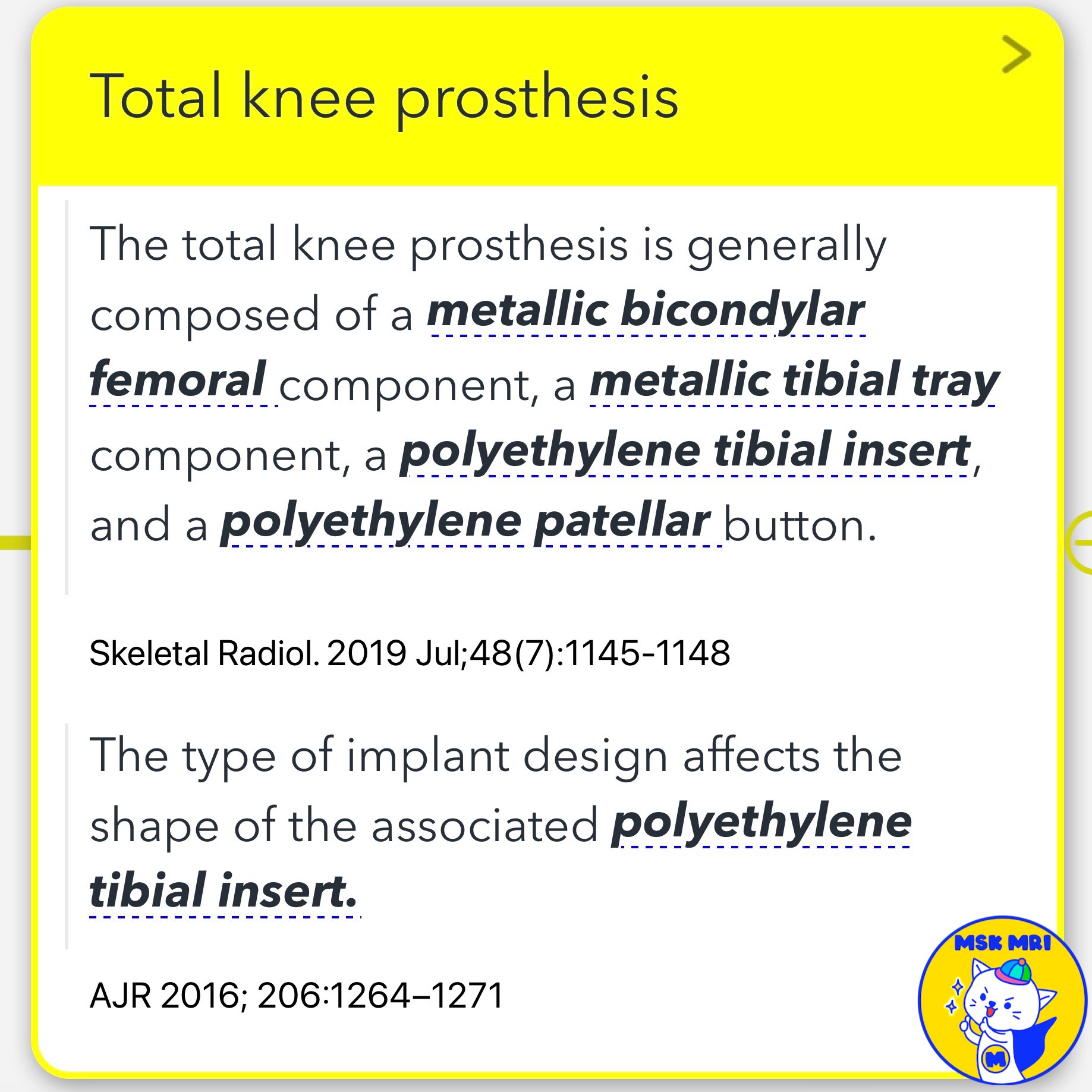

✅ Total Knee Prosthesis

• The total knee prosthesis generally comprises a metallic bicondylar femoral component, a metallic tibial tray component, a polyethylene tibial insert, and a polyethylene patellar button. The type of implant design affects the shape of the associated polyethylene tibial insert.



• The shape of the polyethylene tibial insert varies greatly due to the myriad TKA designs.
• One of the challenges during MRI interpretation is determining whether the appearance of the polyethylene tibial insert indicates an abnormality, such as polyethylene wear, or reflects the manufacturer’s design.

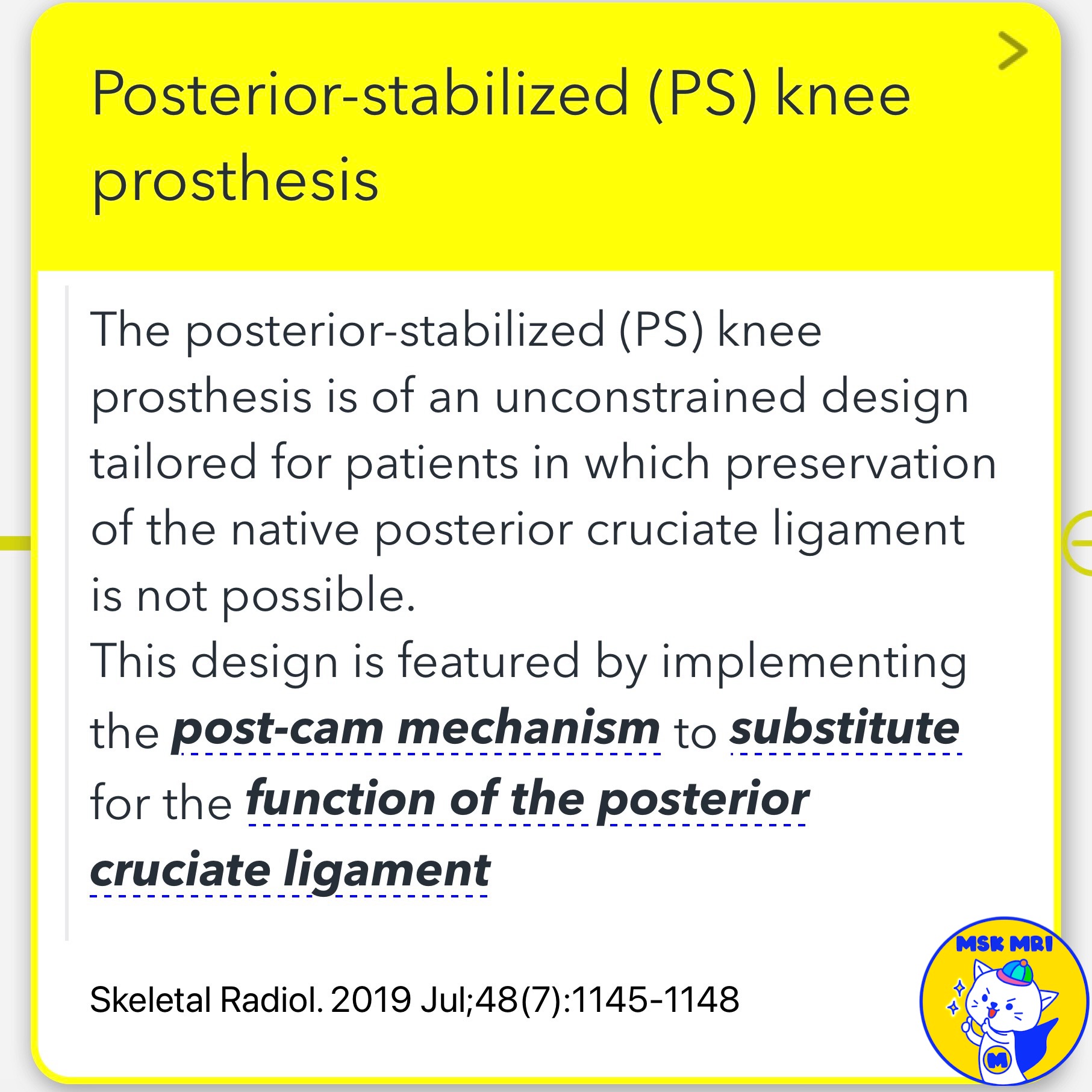

✅ Posterior-Stabilized (PS) Knee Prosthesis

• The posterior-stabilized (PS) knee prosthesis is of an unconstrained design tailored for patients in which preservation of the native posterior cruciate ligament is not possible.
• This design features the post-cam mechanism to substitute for the function of the posterior cruciate ligament.
• In these designs, the femoral component has a cam that engages the vertical post on the polyethylene tibial insert to promote rollback of the femur on the tibia and improve flexion.



✅  Posterior Cruciate-Retaining Designs

• Posterior cruciate-retaining designs rely on the native PCL for stability during flexion, and the polyethylene tibial insert does not feature a post.



References

• Skeletal Radiol. 2019 Jul;48(7):1145-1148
• AJR 2016; 206:1264–1271
