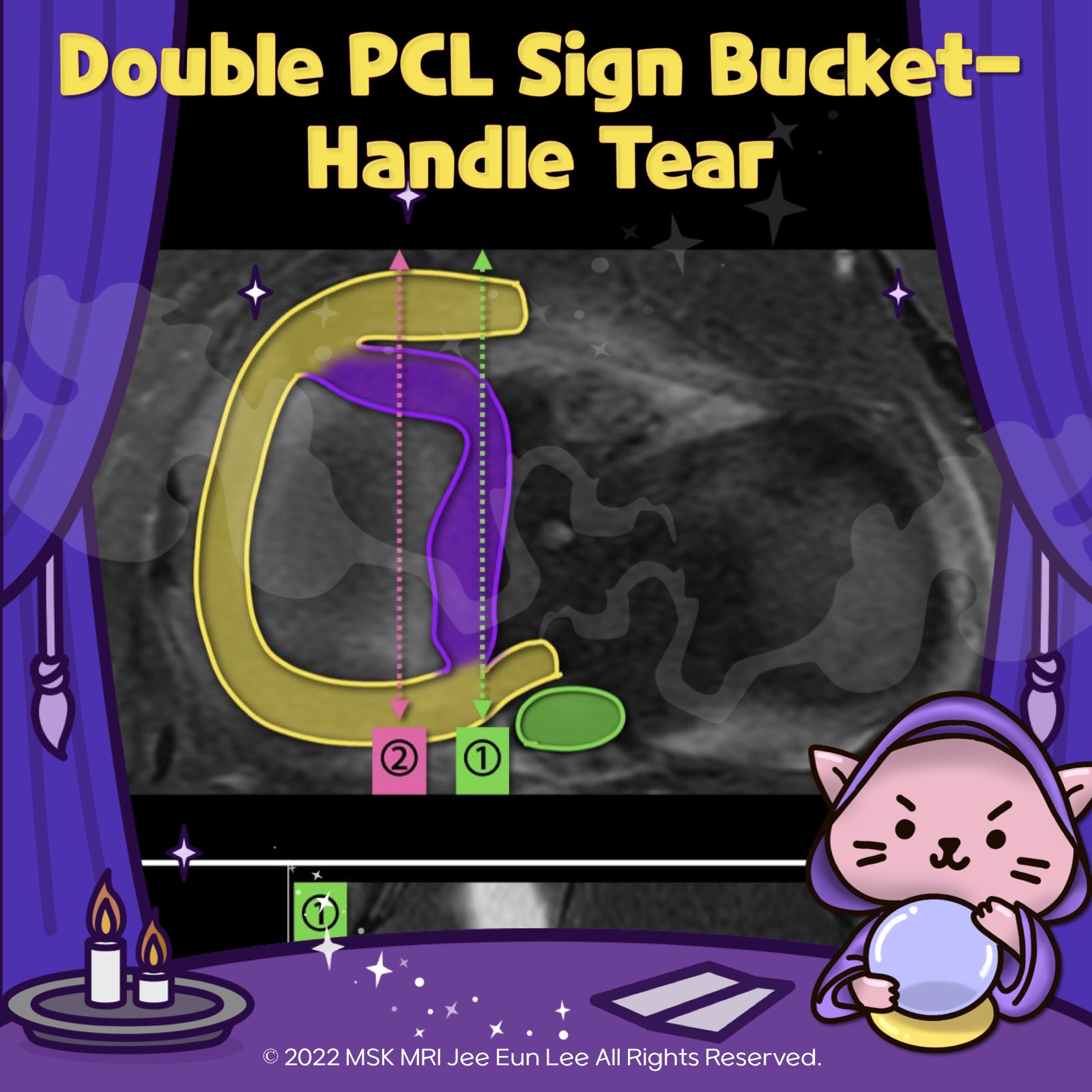

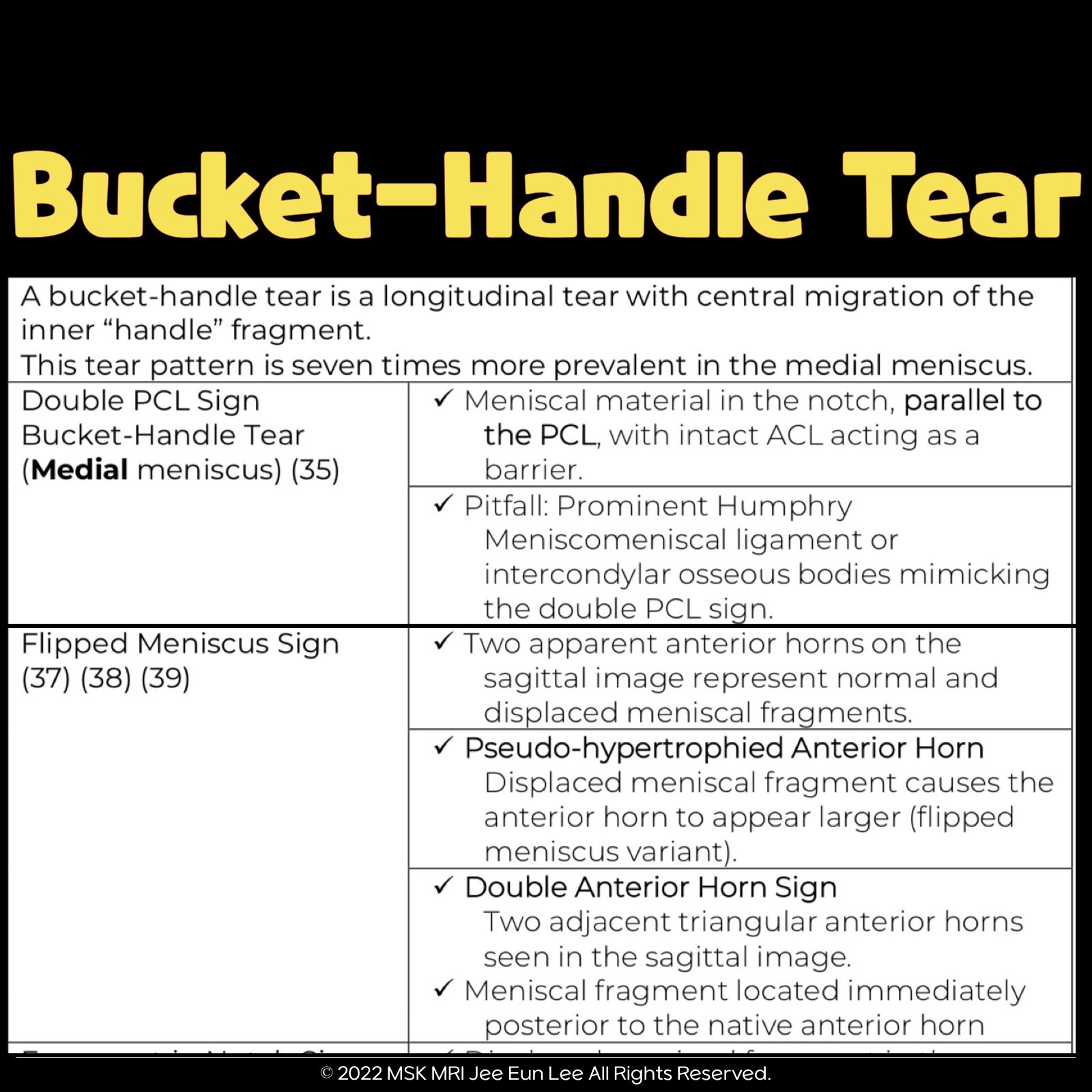

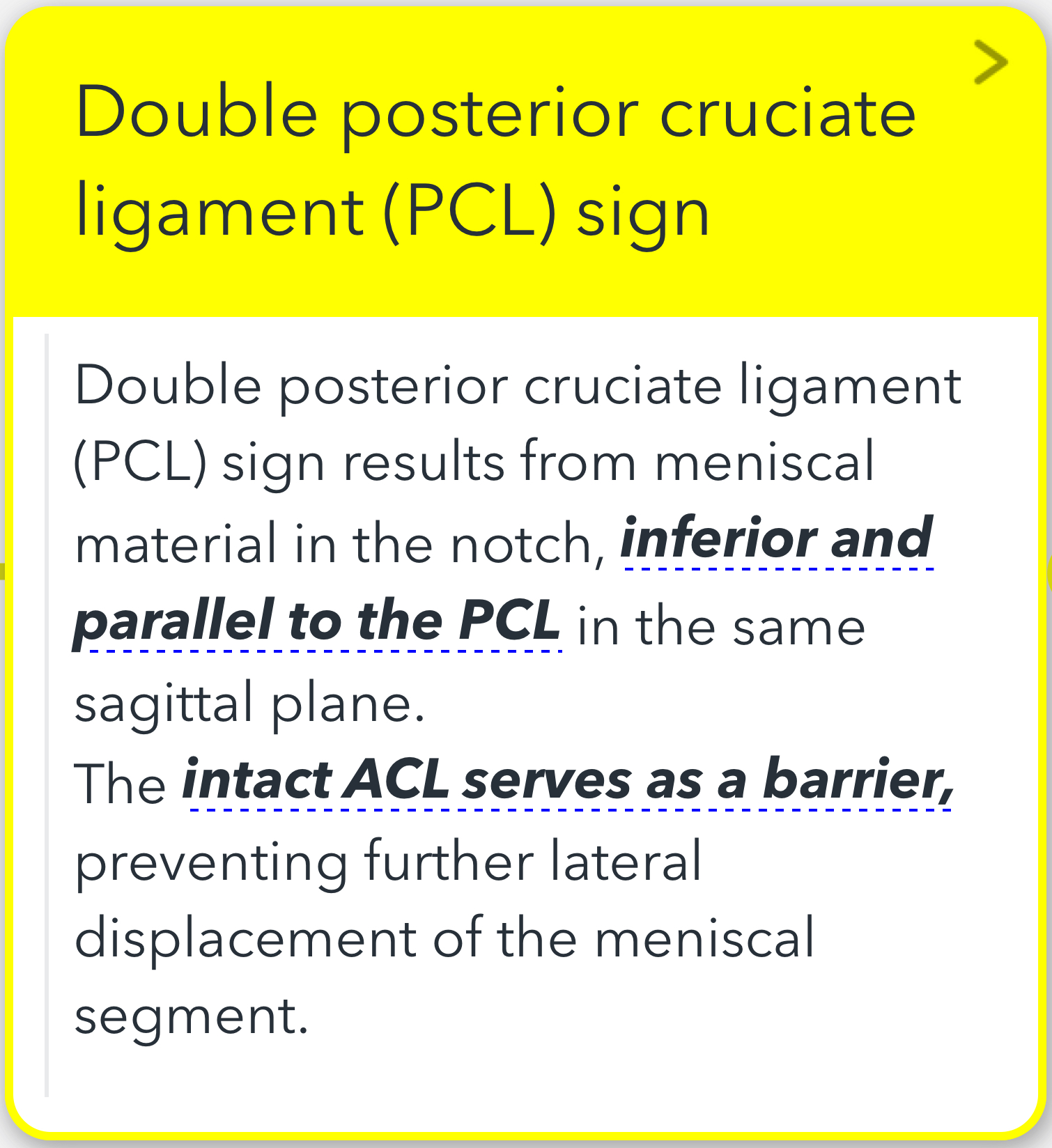

🧐 Double Posterior Cruciate Ligament (PCL) Sign:

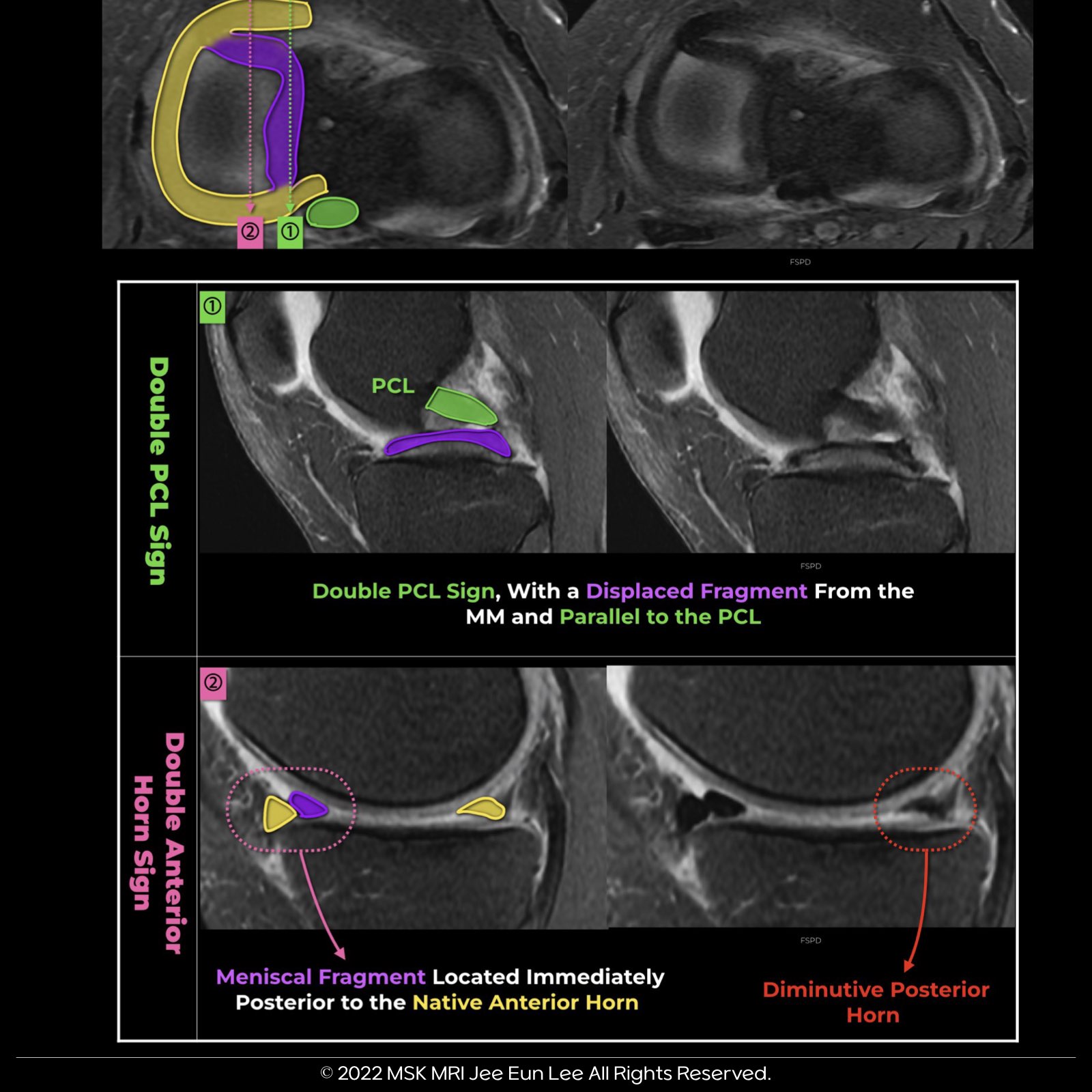

Double posterior cruciate ligament (PCL) sign results from meniscal material in the notch, inferior and parallel to the PCL in the same sagittal plane.
The intact ACL serves as a barrier, preventing further lateral displacement of the meniscal segment.
👥 Mimics of the Double PCL Sign 👥:

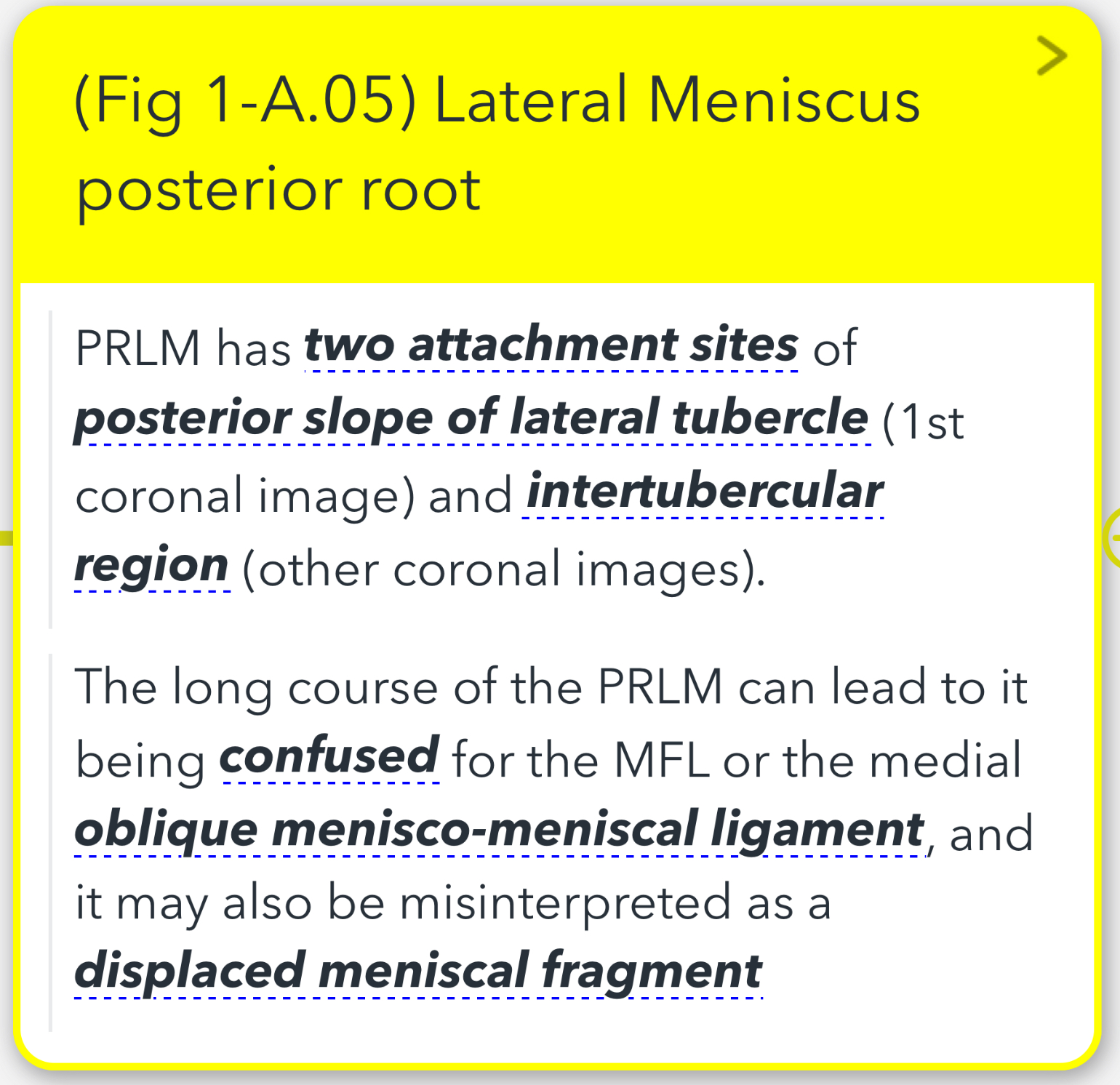

- (Fig 1-A.05) Lateral Meniscus posterior root

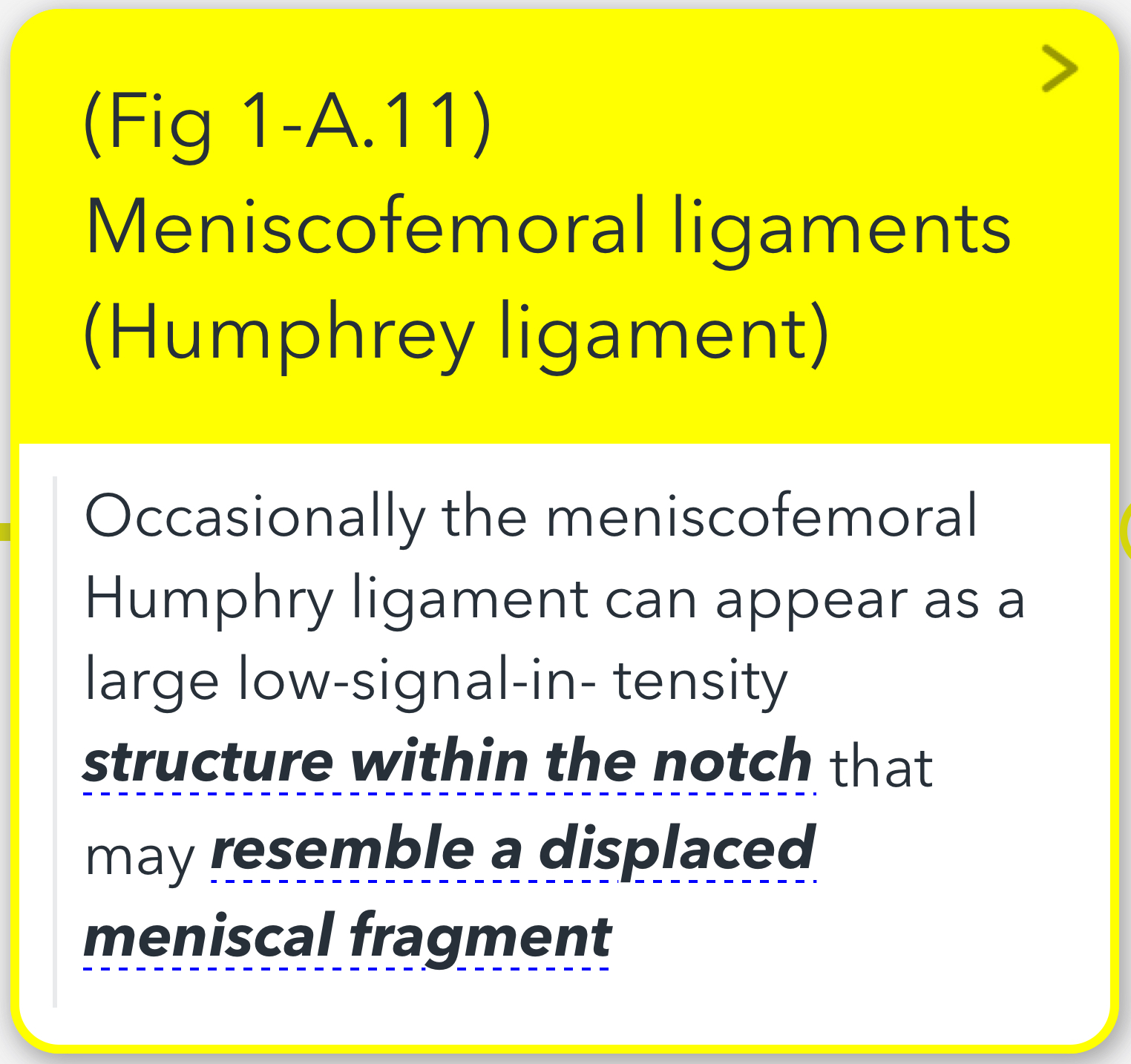

- (Fig 1-A.11) Meniscofemoral ligaments (Humphrey ligament)

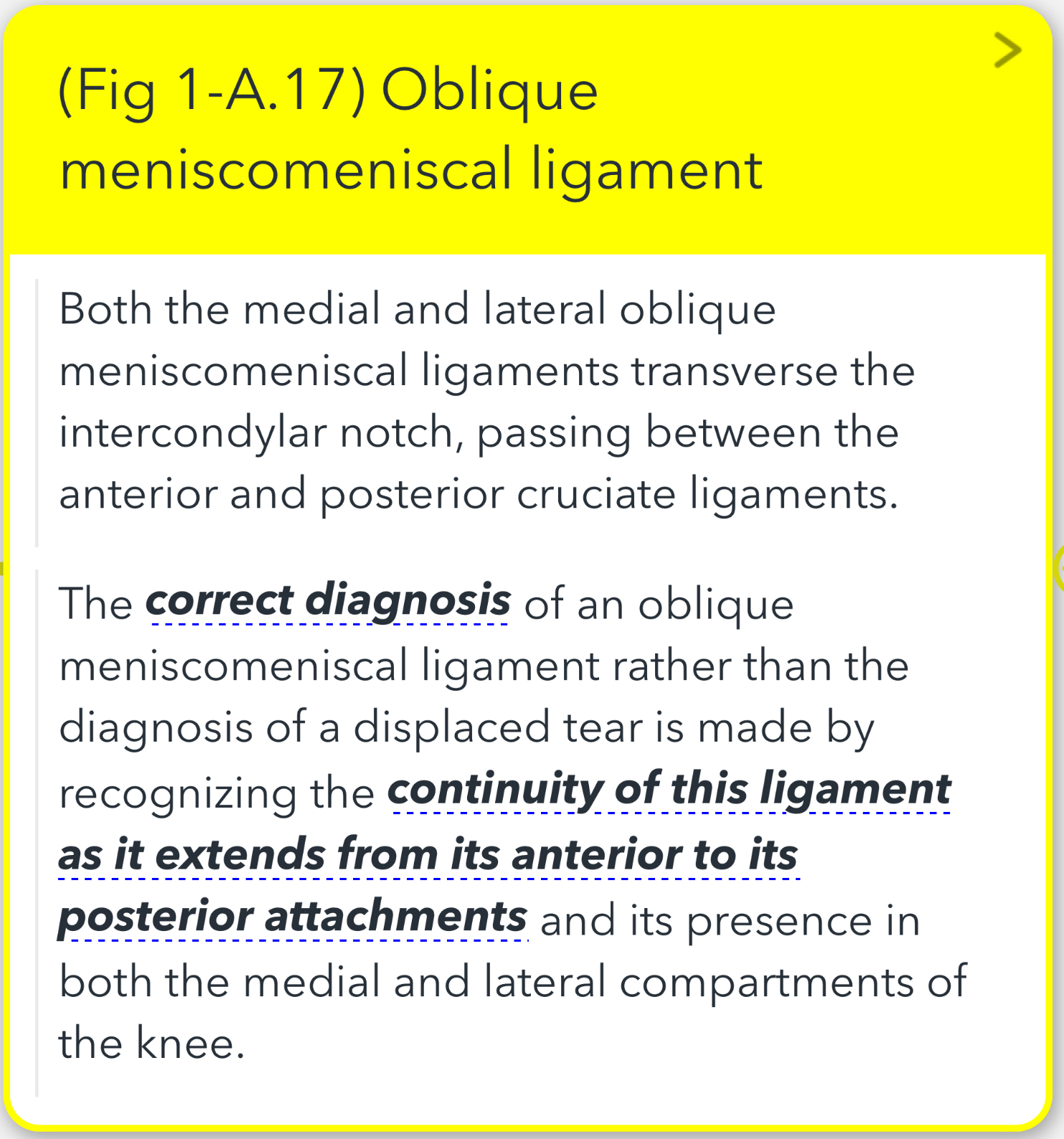

- (Fig 1-A.17) Oblique meniscomeniscal ligament
- (Fig 1-A.17) Oblique meniscomeniscal ligament

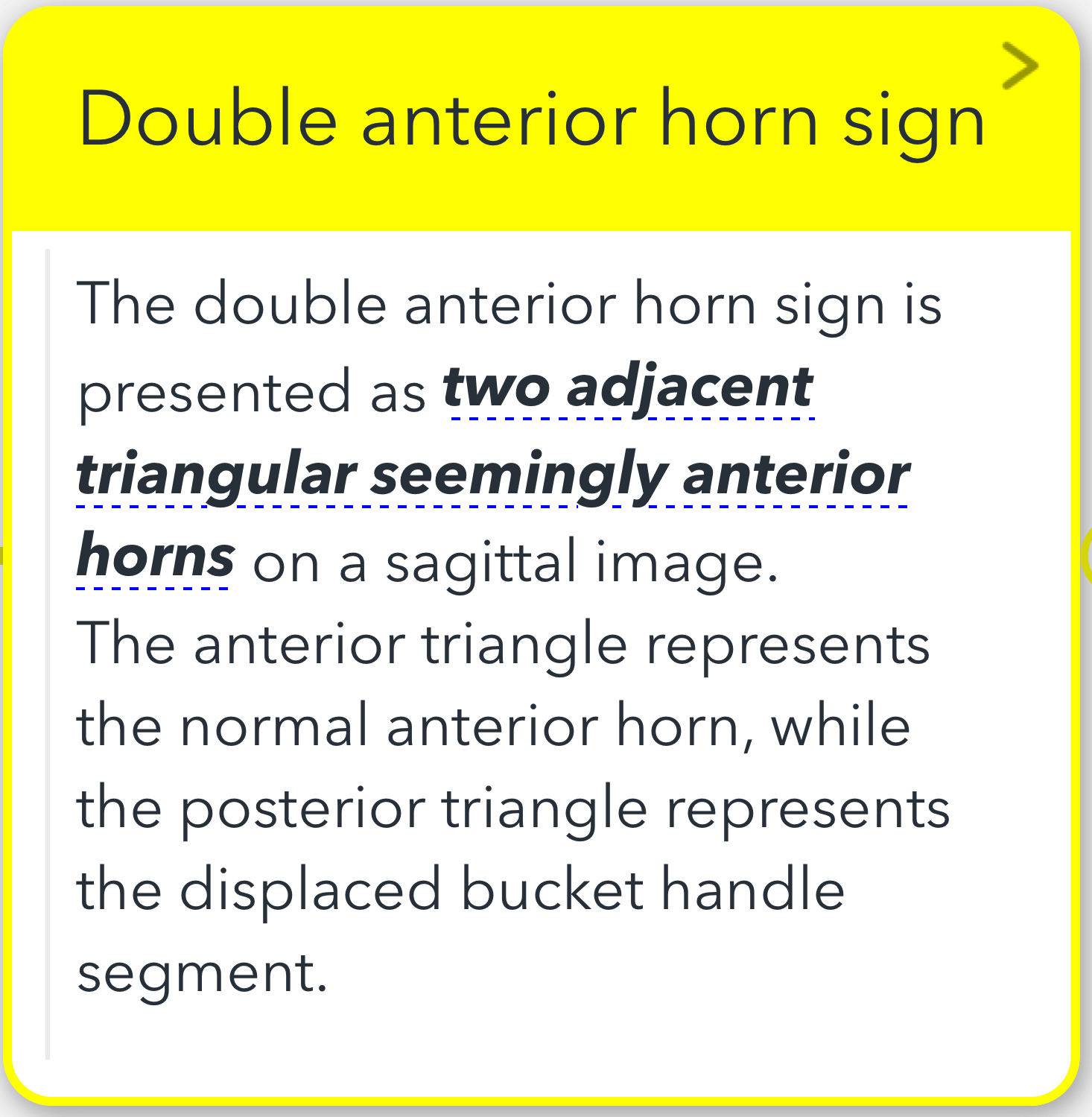

🧩 Double Anterior Horn Sign:
The double anterior horn sign is presented as two adjacent triangular seemingly anterior horns on a sagittal image.
The anterior triangle represents the normal anterior horn, while the posterior triangle represents the displaced bucket handle segment.
"Visualizing MSK Radiology: A Practical Guide to Radiology Mastery"
© 2022 MSK MRI Jee Eun Lee All Rights Reserved.
#VisualizingMSK #BucketHandleTears
