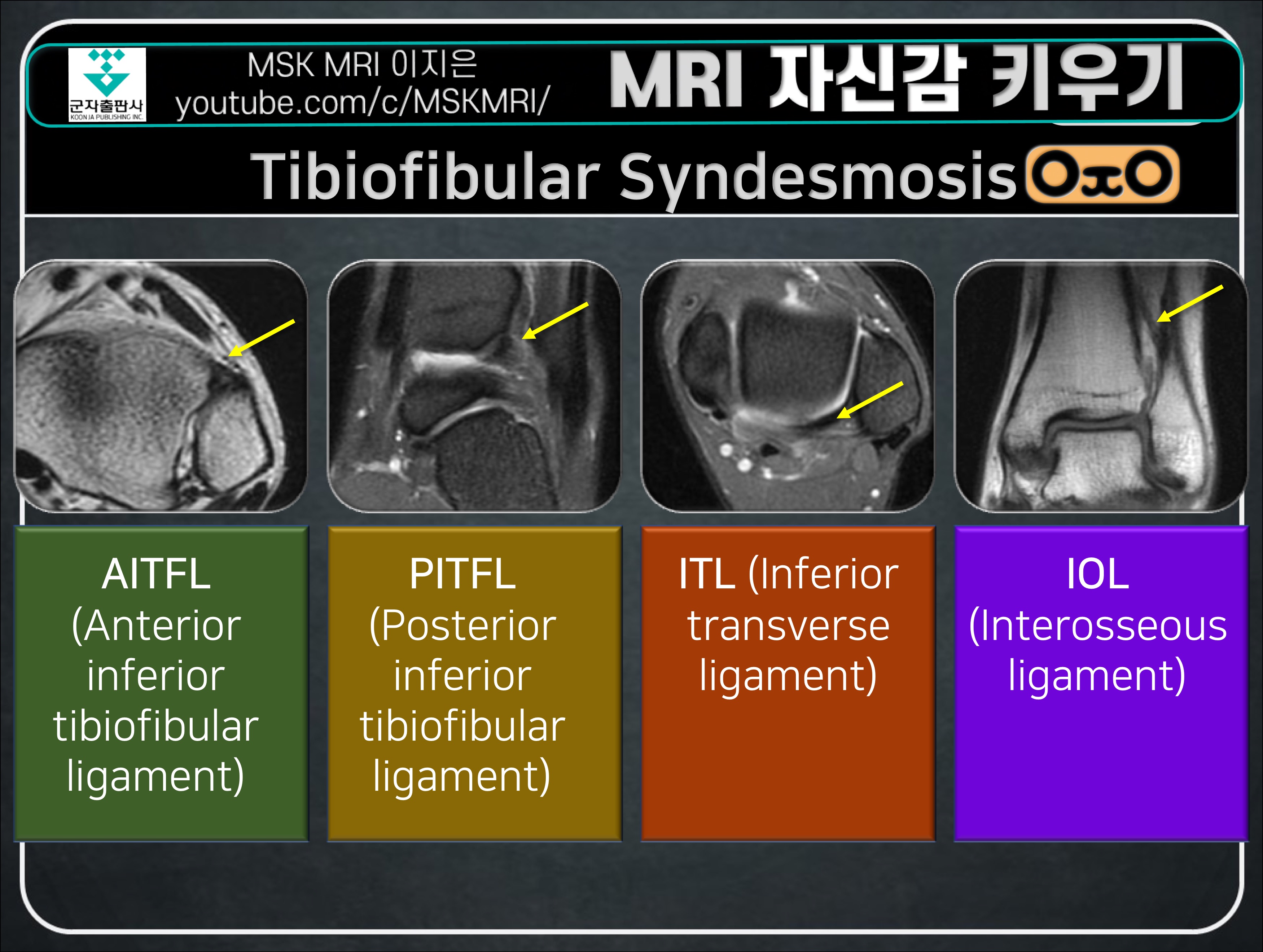

A.      Distal tibiofibular syndesmosis



         1.      Anterior inferior tibiofibular ligament (AITFL)





⬧ The AITFL had a trapezoidal shape, with multiple bands of fibers that extended obliquely in a distal and lateral direction from the tibia to the fibula. (13)

⬧ This ligament had a variable number of bands, ranging from three to four. (13)

⬧ AITFL as a striated band with an oblique orientation between the anterolateral tibia and the lateral malleolus.

⬧ The oblique orientation and craniocaudal extent of the AITFL often requires 2 to 3 axial images to completely assess.



         2.      Accessory Anterior Inferior Tibiofibular (Bassett’s) Ligament



⬧ The accessory anterior inferior tibiofibular ligament (also published in the radiology literature as “Bassett’s ligament”) runs parallel and distal to the AITFL, also attaching to the tibia and fibula. (14)

⬧ The distal attachment of Bassett’s ligament approximates the fibular attachment of the anterior talofibular ligament (ATFL). (14)

⬧ Presumably the abnormally thickened accessory AITFL contacts the superolateral talar dome, resulting in the cartilage abrasion.



         3.      Posterior inferior tibiofibular ligament (PITFL)



Posterior inferior tibiofibular ligament (PITFL)

⬧ The PITFL is the strongest component of the syndesmotic ligament complex.

⬧ The PITFL was a compact ligament that was triangular in shape and extended from the posterior edge of the fibular notch of the distal tibia to the malleolar fossa behind the triangular articular facet of the lateral malleolus of the fibula

⬧ The ligament was multifascicular, with a broad attachment to the lateral malleolus



         4.      Inferior transverse ligament (ITL)





⬧ The deep fibers of the PITFL are also known as the transverse ligament

⬧ The inferior component of the deep fibers extends below the articular surface and is triangular in cross-sectional morphology, resembling a labrum. (15)

 ⬧ The course of this ligament was more horizontal than that of the PITFL



         5.      Interosseous ligament (IOL)



⬧ The interosseous ligament, which is the lower margin of the interosseous membrane, is visible as a thin linear hypointense band extending from the tibia to the fibula.

⬧ Small amount of joint fluid protrudes superiorly into the normal interosseous synovial recess



         6.      Posterior Intermalleolar ligament (IML)



IML is as a distinct separate ligament traversing between the posterior talofibular ligament (PTFL) and the ITL. (13)

⬧ The configuration of the IML is variable, ranging from a thin set of fibers to a thick compact band. (13)

⬧ The IML clinically important as a cause of posterior impingement syndrome
