[MRI 자신감키우기-05] Spring ligament and Lisfranc ligament, Midtarsal(Chopart) joint ligament and ankle retinaculum, anatomy, 군자출판사, Bifurcate

[MRI 자신감 키우기: 족부편] 제 책이 출간되었습니다.



안녕하세요

영상의학과 이지은입니다.

2020년 겨울부터 쓰기 시작한 제 책이 드디어 출간되었습니다.



이미지가 워낙 많고, 동영상 QR코드가 수 백개이다보니 1년이 넘게 걸렸네요.

(군자출판사와 제가 13차 수정까지 했더라구요)



제 책을 기다려 주신 선생님들에게 생각보다 오래 걸려서 죄송하다는 말씀을 드리고 싶습니다.

제 책의 여러 판매처 중 몇 군데만 링크를 아래 달아두겠습니다.

부족할 수 있지만, 최선을 다한 책이니 많은 관심 가져주시면 감사드리겠습니다 ^^



MRI 자신감 키우기: 족부편

네이버 책:

https://book.naver.com/bookdb/book_detail.nhn?bid=22221868

MRI 자신감 키우기

인터넷 교보문고:

http://www.kyobobook.co.kr/product/detailViewKor.laf?mallGb=KOR&ejkGb=KOR&linkClass=&barcode=9791159558511

MRI 자신감 키우기: 족부편 - 교보문고

예스 24:

http://www.yes24.com/Product/Goods/108184827

MRI 자신감 키우기 - YES24



인터파스도서:

https://book.interpark.com/product/BookDisplay.do?_method=detail&sc.prdNo=354595718&utm_medium=affiliate&utm_source=naver&utm_campaign=book_20211015_naverbook_p01455_cps&utm_content=conversion_47

싸니까 믿으니까 인터파크도서



도서11번가

https://www.11st.co.kr/products/4233404778?utm_term=&utm_campaign=%B5%B5%BC%AD%B3%D7%C0%CC%B9%F6w%B1%E2%BA%BB&utm_source=%B5%B5%BC%AD%B3%D7%C0%CC%B9%F6_PC_PCS&utm_medium=%B0%A1%B0%DD%BA%F1%B1%B3

[11번가] MRI 자신감 키우기 /BUILD CONFIDENCE IN MSK MRI

#ankleMRI, #footMRI, #MRI자신감키우기, #족부MRI, #퍼스널_티칭,#오늘부터_1일





Midtarsal joint

Gross anatomy

The midtarsal joint consists of two joints:

• talocalcaneonavicular joint (often referred to as talonavicular joint): formed by the anterior articular surface of the talus, and a socketlike structure consisting of the posterior articular surface of navicular, talar facets of the anterior part of the calcaneus and part of the spring ligament complex
• calcaneocuboid joint: formed by the anterior articular surface of the calcaneus and the posterior articular surface of the cuboid

Ligaments

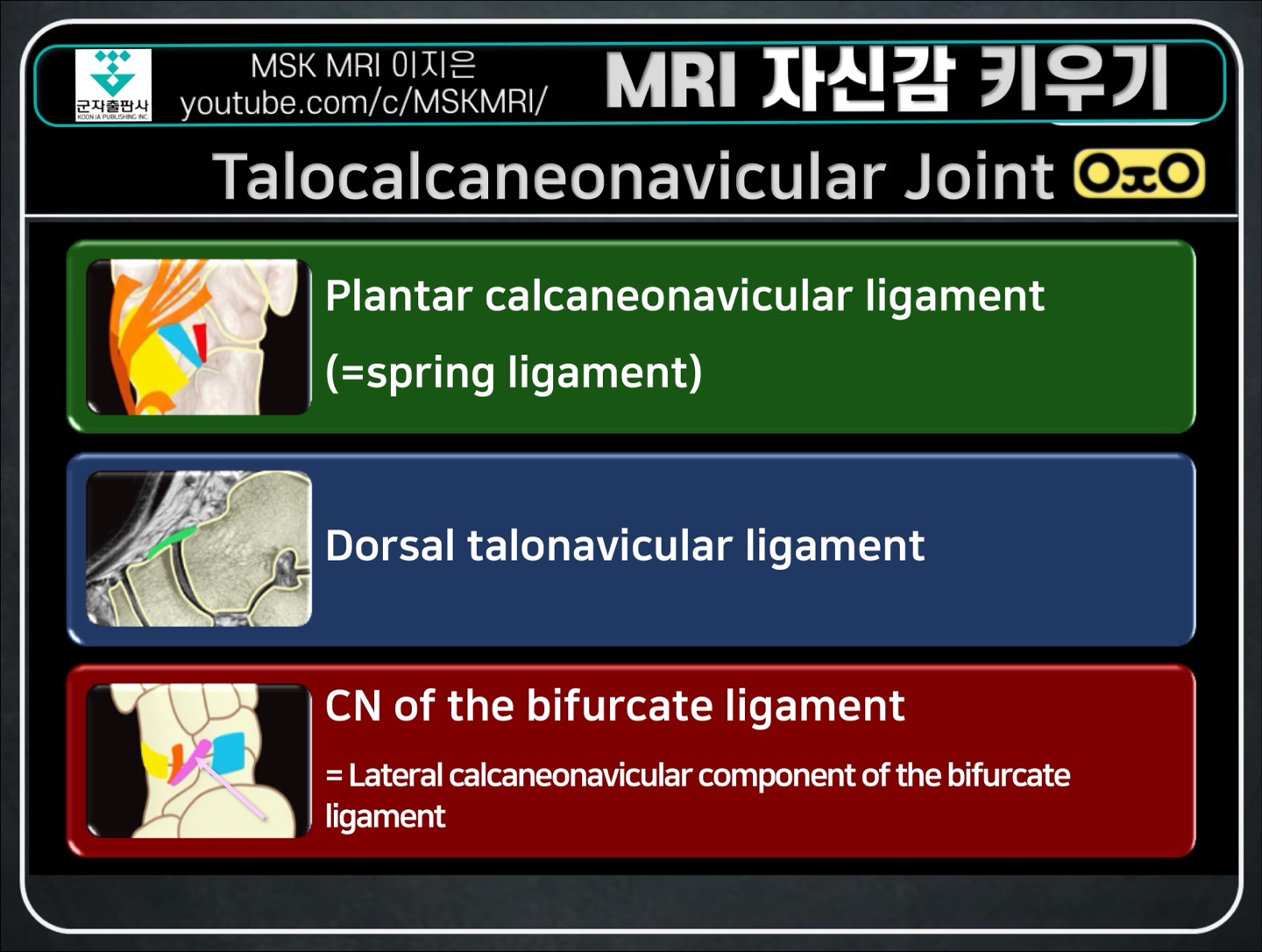

• talocalcaneonavicular joint:
  • dorsal talonavicular ligament

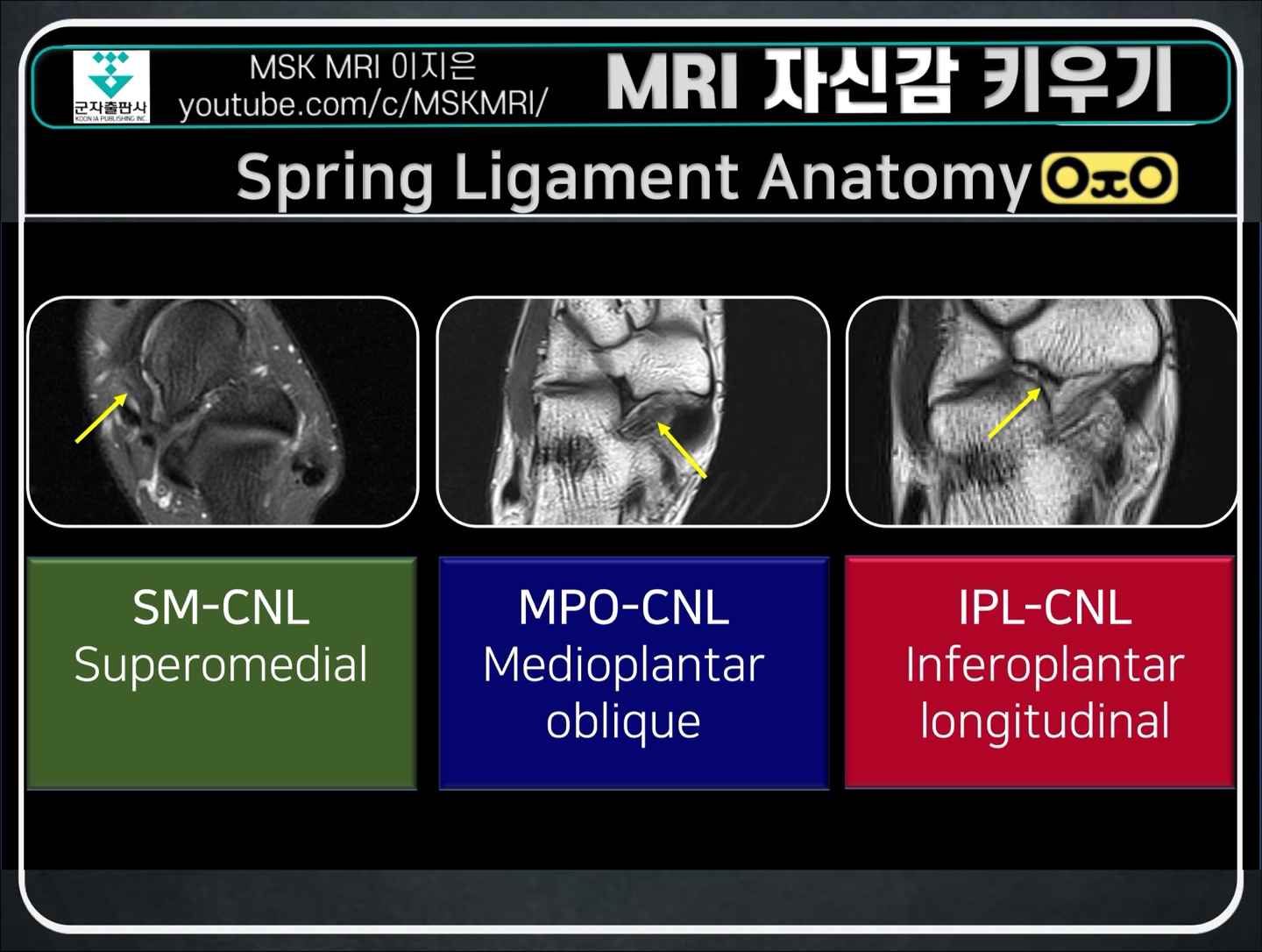

  • spring ligament complex
  • calcaneonavicular component of the bifurcate ligament (also known as lateral calcaneonavicular ligament)

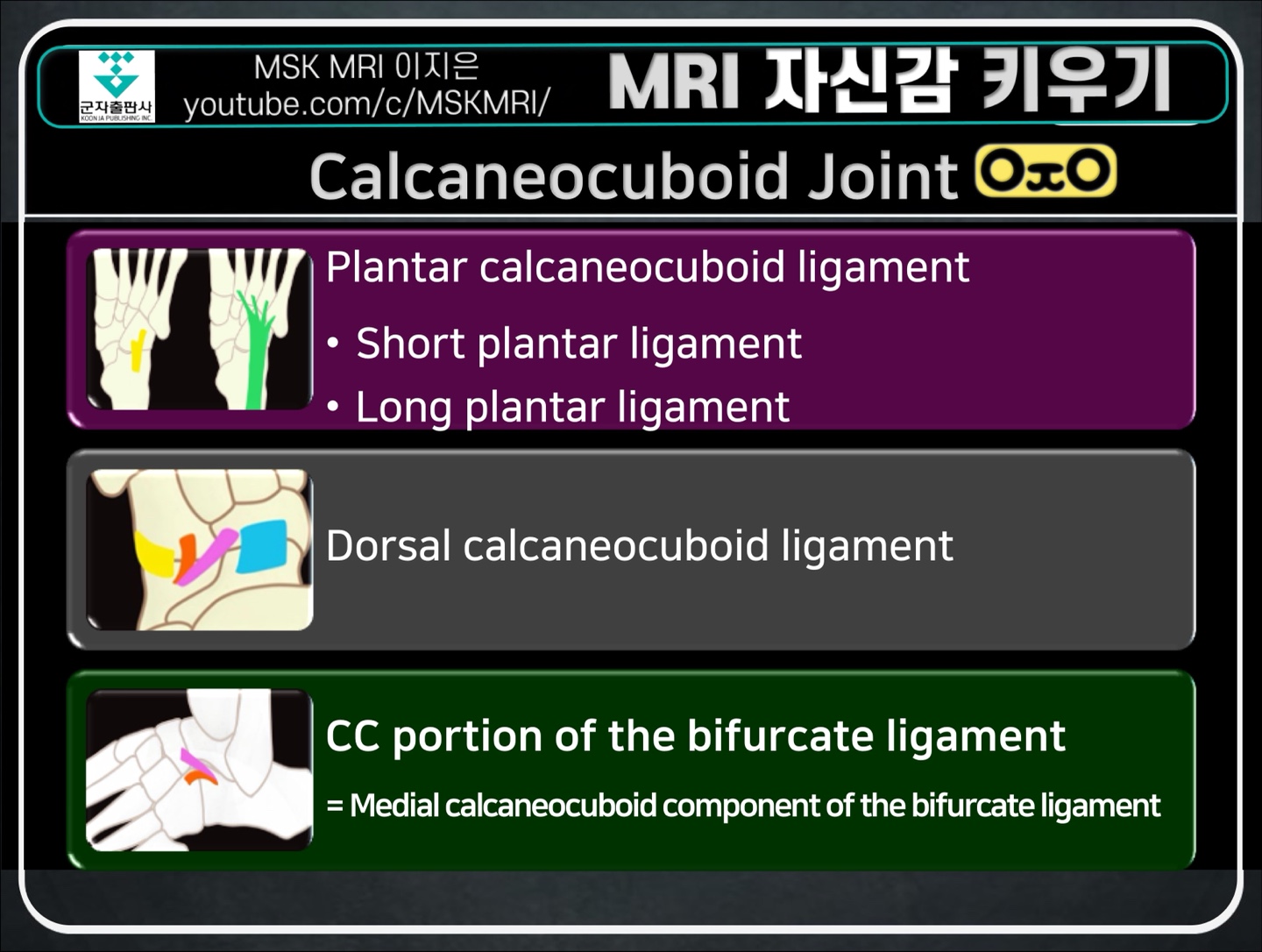

• calcaneocuboid joint:
  • calcaneocuboid component of the bifurcate ligament (also known as medial calcaneocuboid ligament)
  • dorsal calcaneocuboid ligament
  • short and long plantar ligaments (often called inferior calcaneocuboid ligament or plantar calcaneocuboid ligament)



---

Lisfranc joint

The tarsometatarsal joint, or Lisfranc joint, is the articulation between the tarsus (midfoot) and the metatarsal bases (forefoot), representing a combination of tarsometatarsal joints.

The first three metatarsals articulate with the three cuneiforms, respectively, and the 4th and 5th metatarsals with the cuboid. The base of the 2nd metatarsal keystones into the cuneiforms where there is the important Lisfranc ligament. Numerous dorsal and plantar ligaments support all the tarsometatarsal, intermetatarsal and intertarsal joints and between each bone, there are strong interosseous ligaments.
