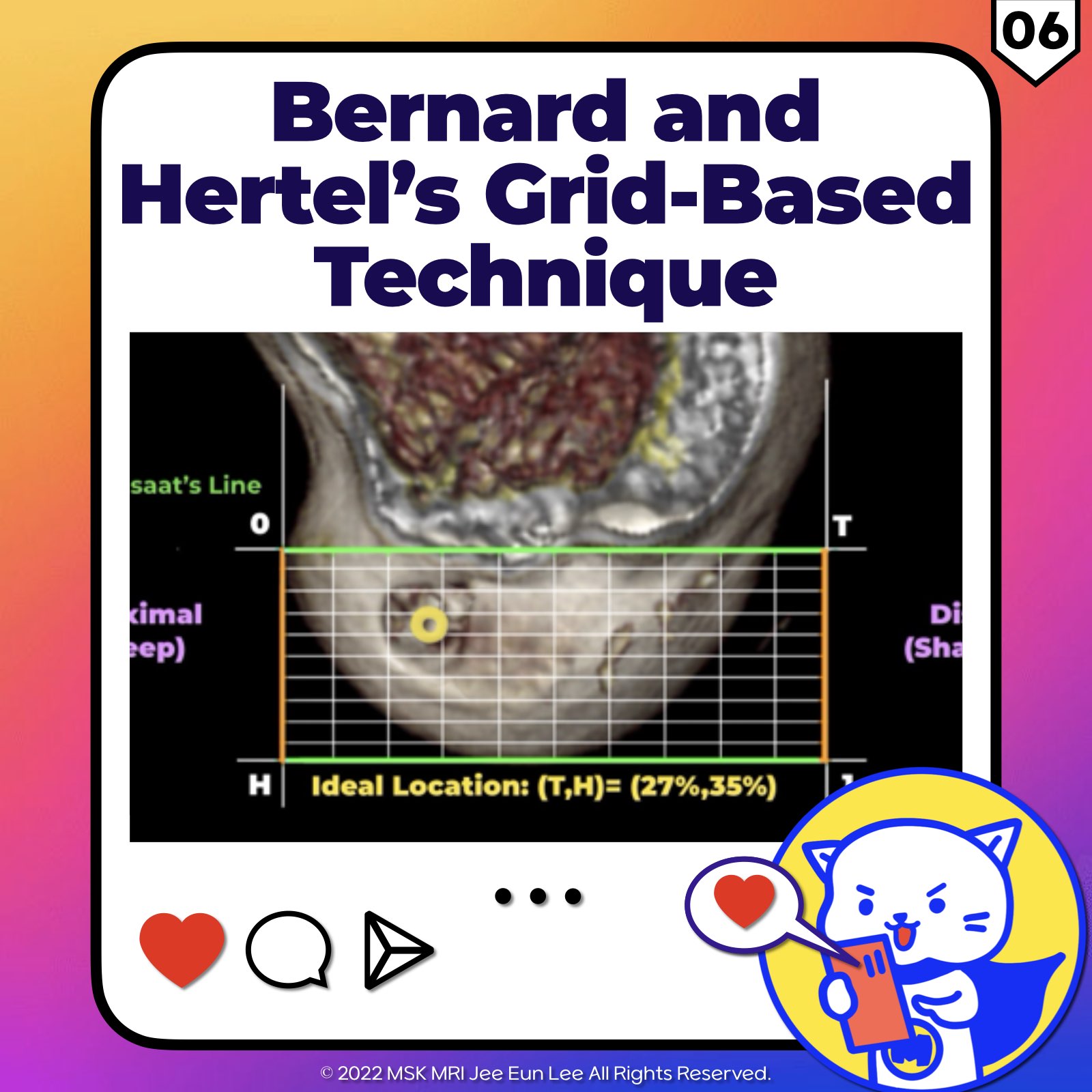

(Fig 2-C.06) Bernard and Hertel’s grid-based technique

https://youtu.be/fVe5J_01GsA

https://youtu.be/uDgqFi3itg0

==============================================

⬇️✨⬇️🎉⬇️🔥⬇️📚⬇️

Click the link to purchase on Amazon 🎉📚

==============================================

🎥 Check Out All Videos at Once! 📺

👉 Visit Visualizing MSK Blog to explore a wide range of videos! 🩻

https://visualizingmsk.blogspot.com/?view=magazine

📚 You can also find them on MSK MRI Blog and Naver Blog! 📖

https://mskmri.tistory.com/

https://blog.naver.com/mskmri

https://www.instagram.com/msk_mri/

Click now to stay updated with the latest content! 🔍✨

==============================================

Ideal Graft Femoral Tunnel Center

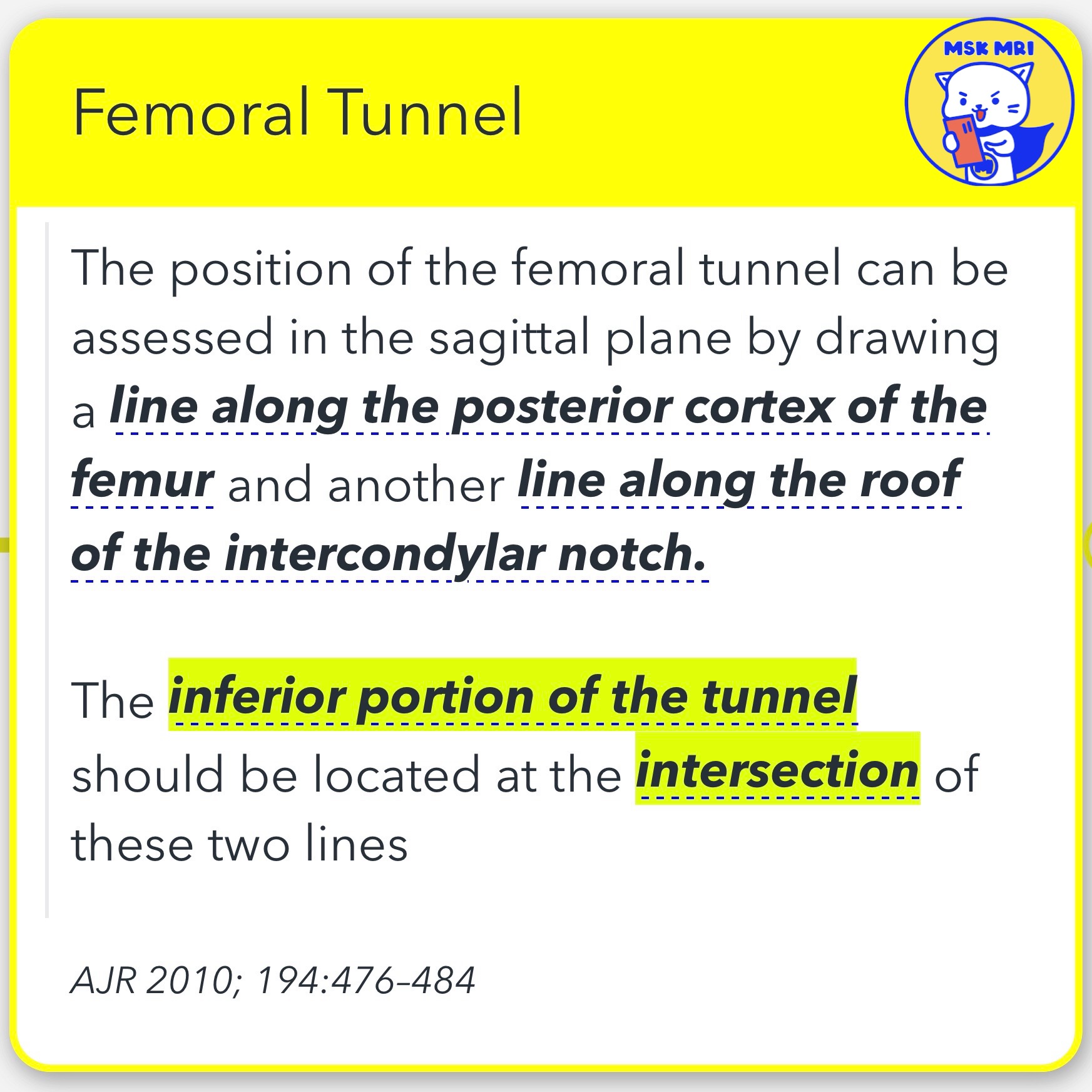

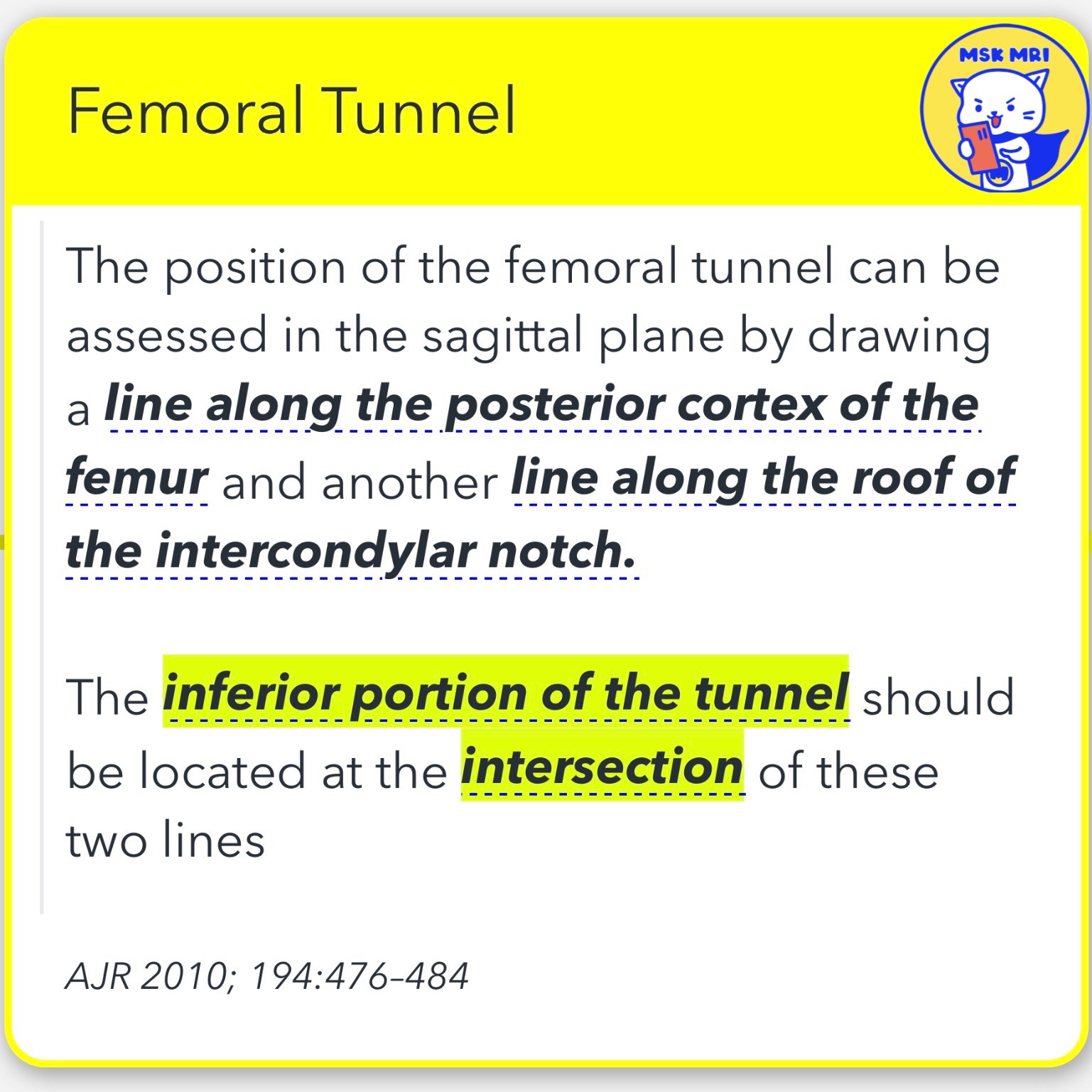

1️⃣ Traditional Method on Conventional X-ray

✅ Assessment in the Sagittal Plane:

• The position of the femoral tunnel can be evaluated in the sagittal plane by drawing two specific lines:
• Posterior Cortex Line: A line along the posterior cortex of the femur.
• Roof Line: Another line along the roof of the intercondylar notch.

✅ Intersection Point: The inferior portion of the tunnel should be located at the intersection of these two lines.

Reference: AJR 2010; 194:476–484.

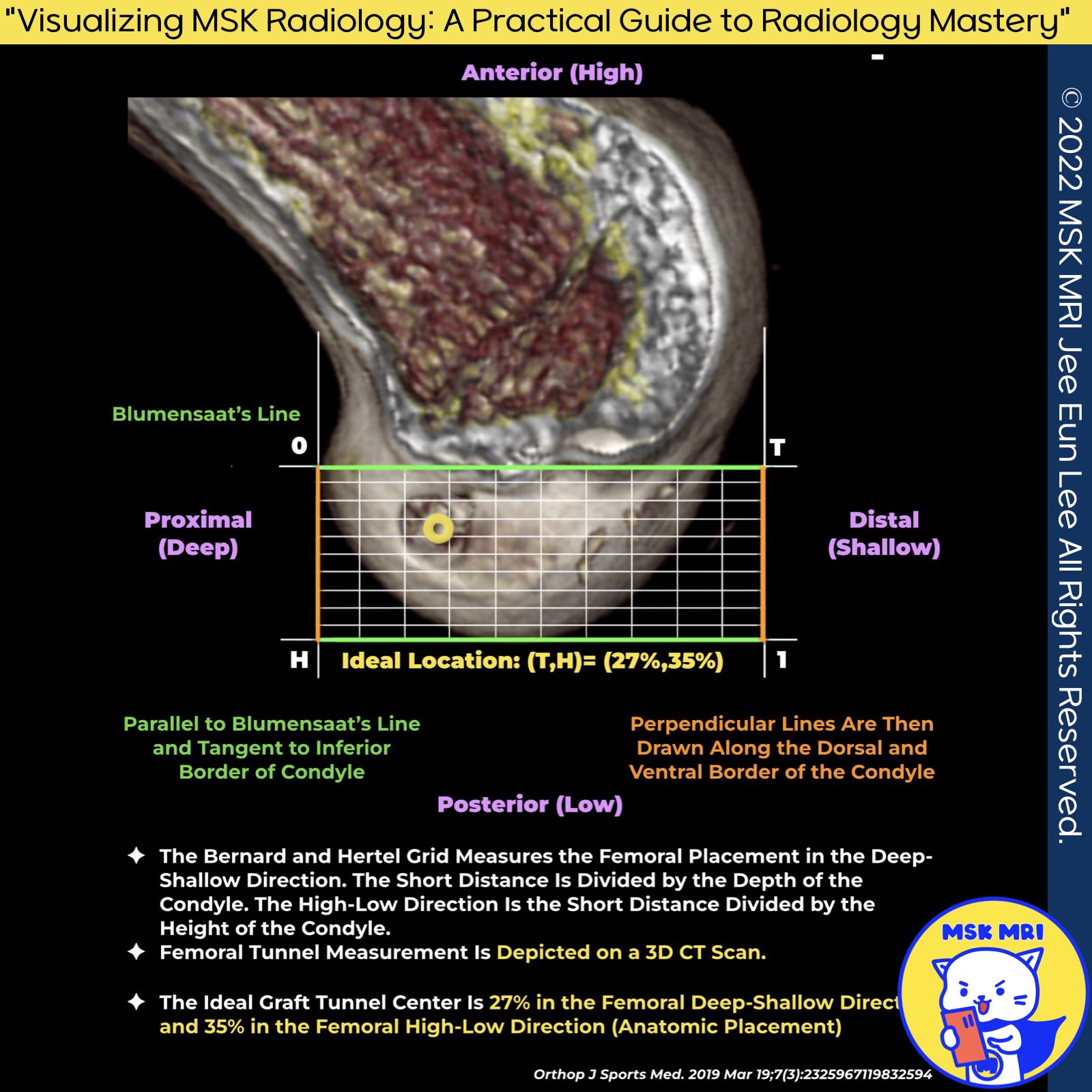

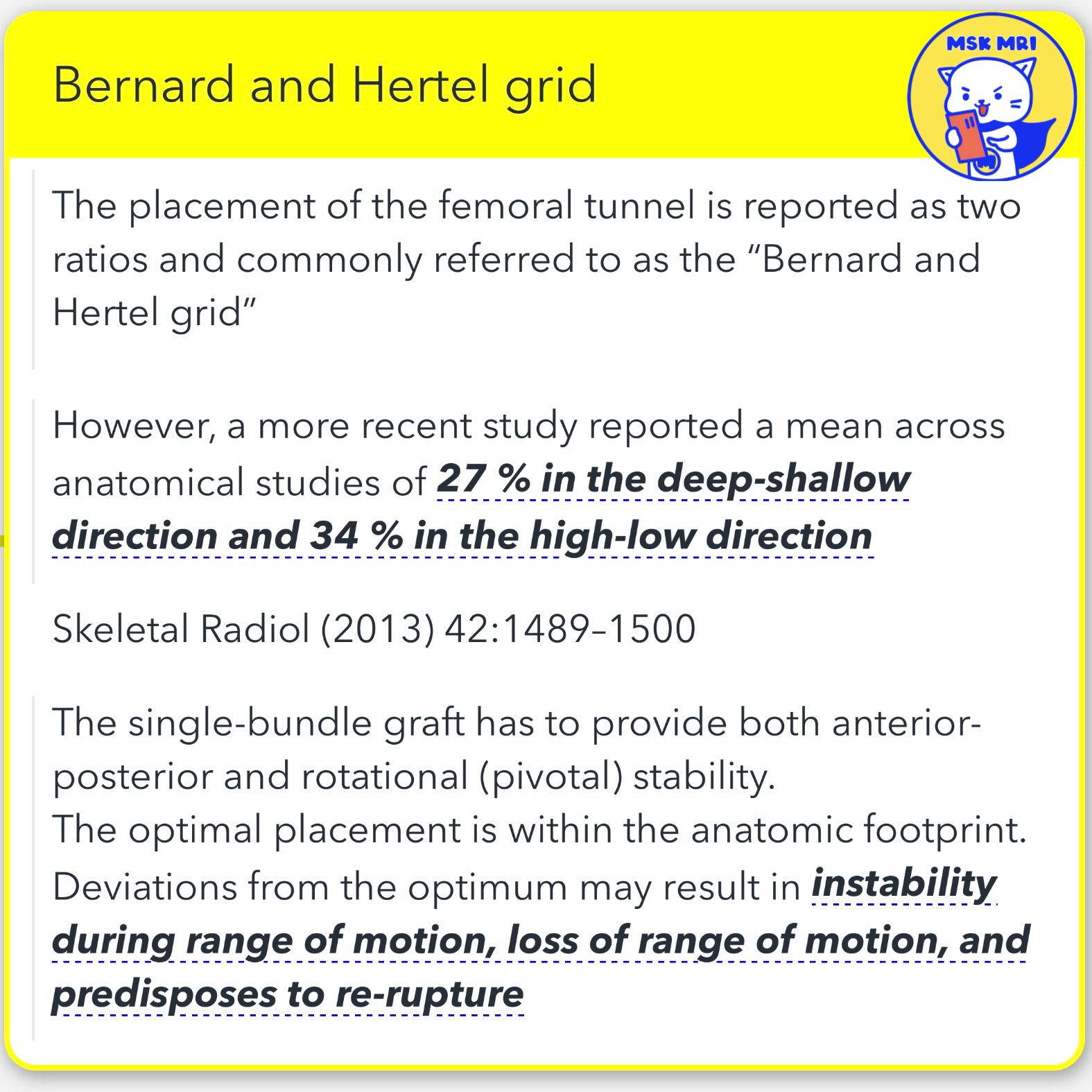

2️⃣ Bernard and Hertel’s Grid-Based Technique Using 3D CT Imaging

✅ Placement Reporting: The placement of the femoral tunnel is reported using two ratios, commonly referred to as the “Bernard and Hertel grid”.

• A more recent study reported mean ratios across anatomical studies of 27% in the deep-shallow direction and 34% in the high-low direction.

✅ Clinical Implications:

• Deviations from the optimum placement may result in instability during the range of motion, loss of range of motion, and predisposes to re-rupture.

Reference: Skeletal Radiol (2013) 42:1489–1500.
