[Knee-04] Anatomy of layers and components, Posterolateral corner 01

MSK MRI 2022. 12. 25. 14:09

https://youtu.be/lMx9cjkzNZw

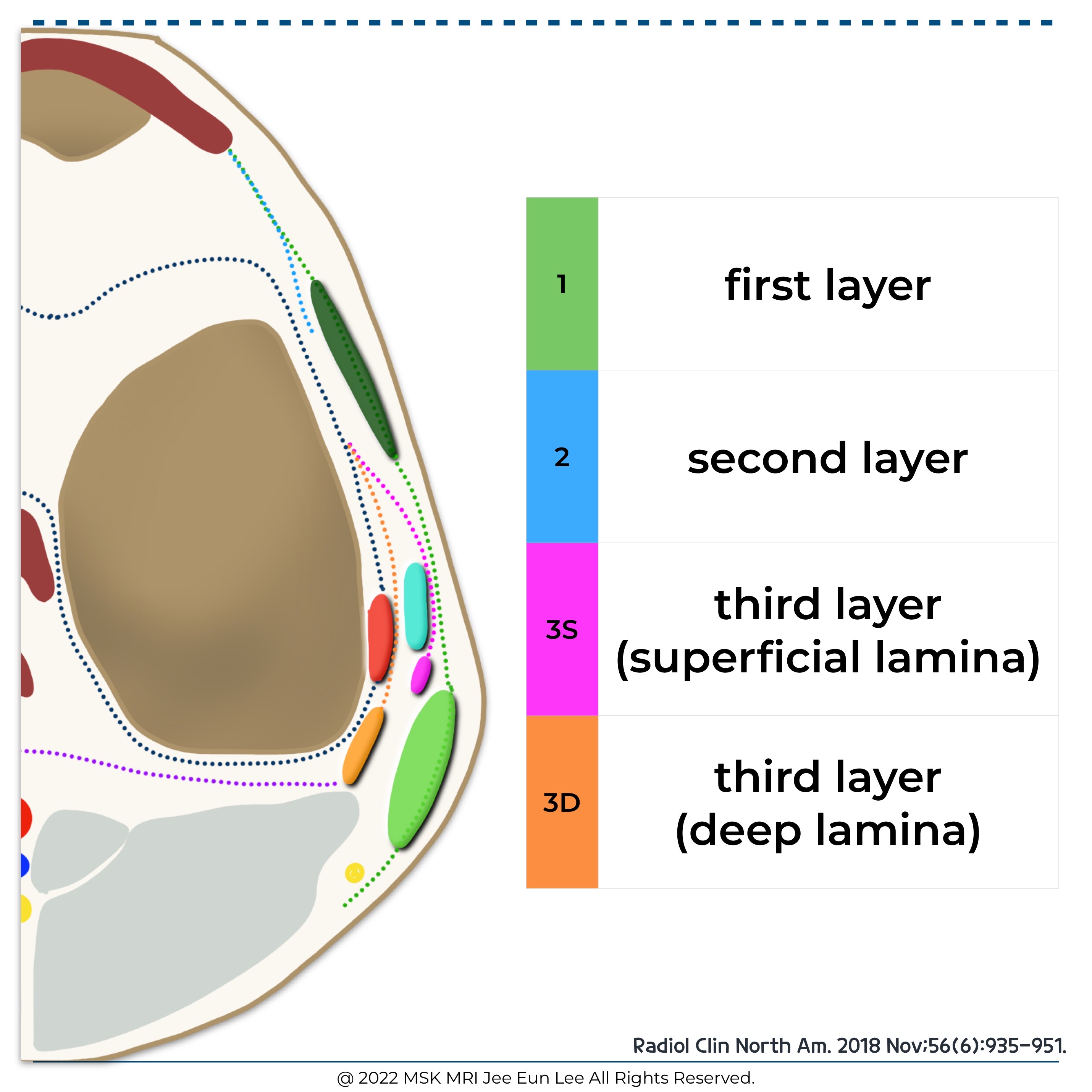

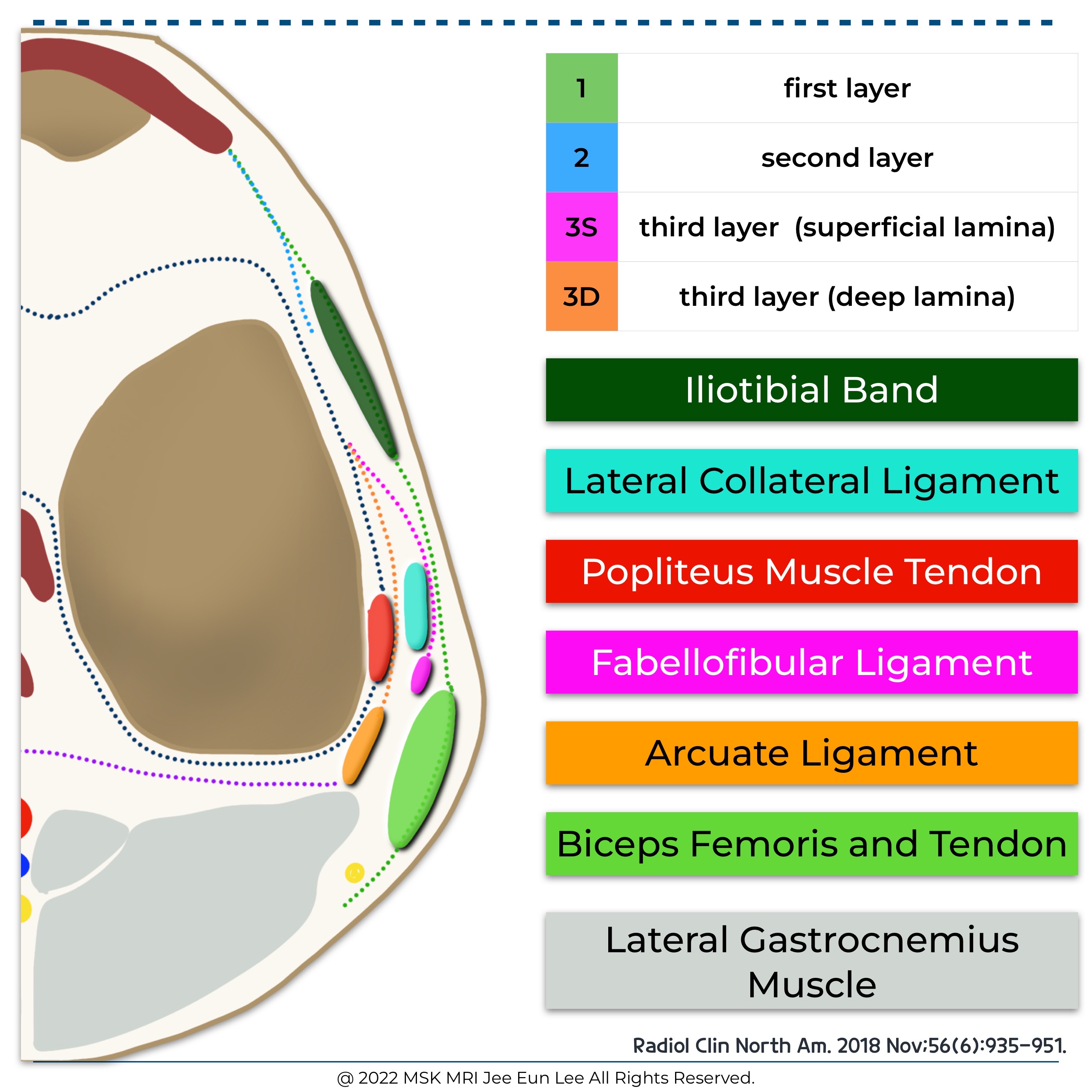

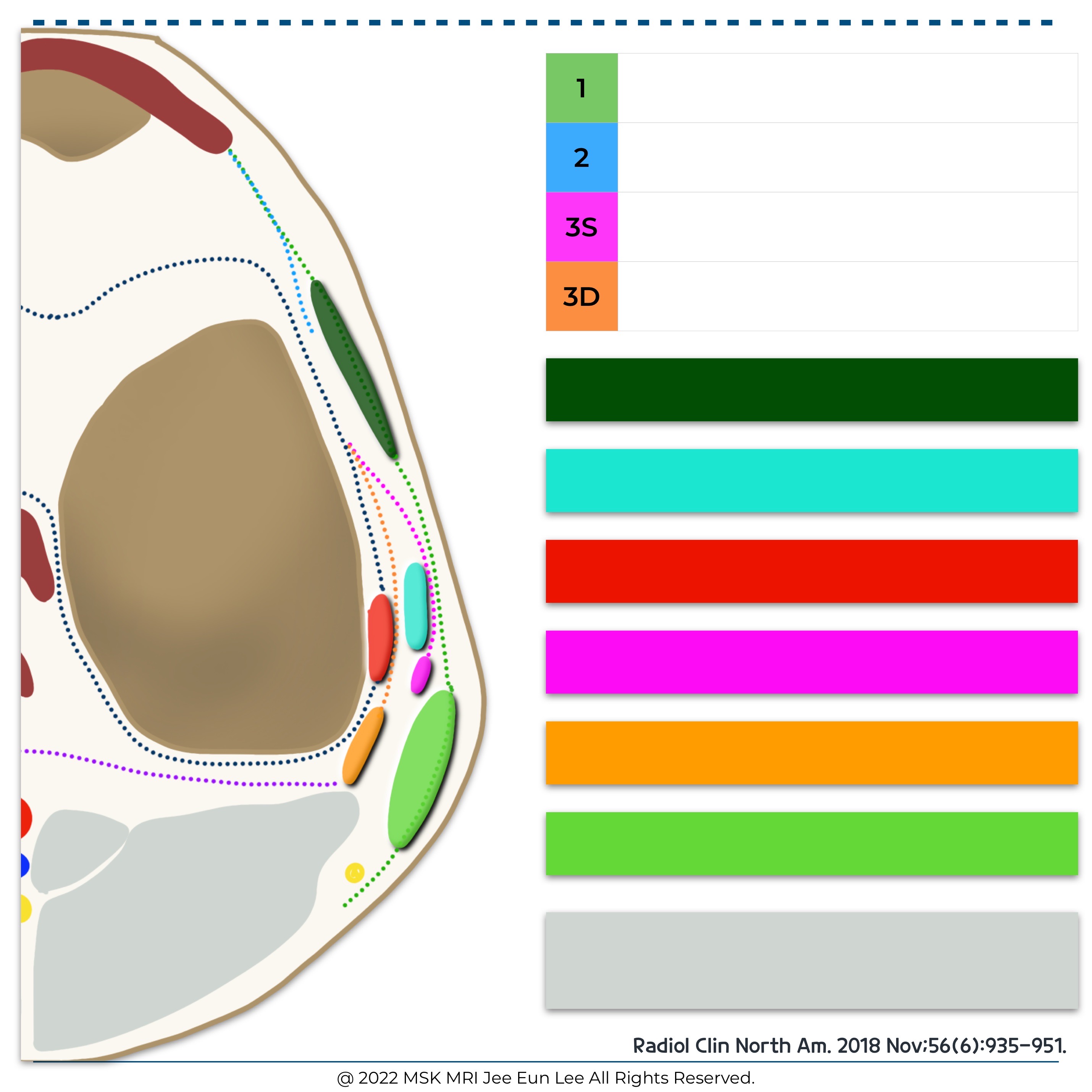

Three structural layers

Layer 1:most superficial

Fascia lata

lliotibial tract with its anterior expansion

Superficial portion of biceps femoris with its posterior expansion

Layer 2

Quadriceps retinaculum anteriorly

Two patellofemoral ligaments or retinacula posteriorly

Lavers 1 and 2 merges at lateral aspect of the patella

Layer 3:deepest layer

The lateral joint capsule, including attachments to the lateral meniscus

Lateral capsular ligament with meniscofemoral and meniscotibial components

Lateral collateral ligament is located posteriorly between superficial and deep divisions of the layer

Fabellofibular ligament,arcuate ligament,popliteus,and popliteofibulaligament

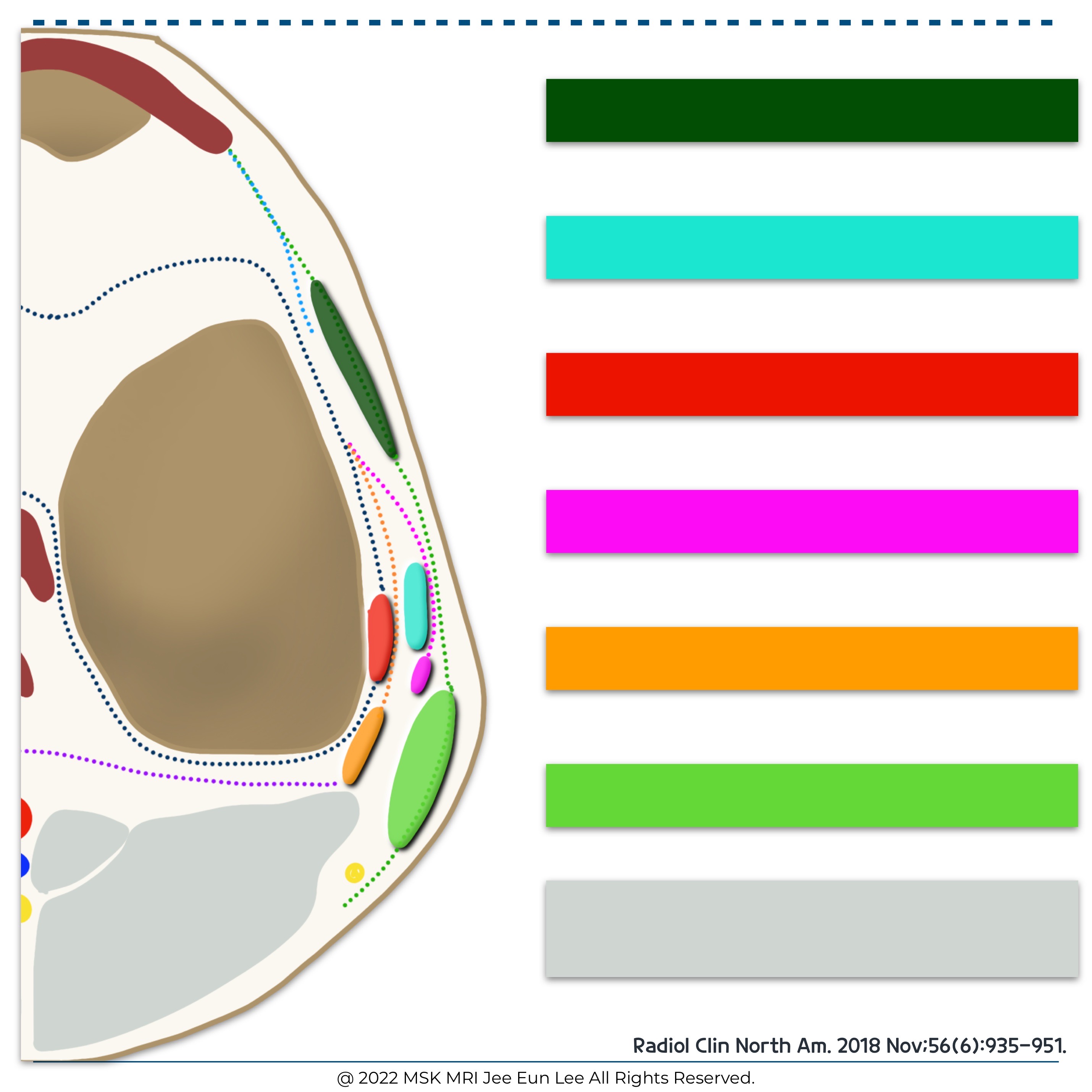

Deep layer

The deep layer is the most anatomically variable of the 3 layers

The deep and superficial laminae of the posterolateral capsule are always separated from each other with the lateral inferior genicular artery, considered an anatomic landmark, between them

  1. Superficial lamina of deep layer
  2. The superficial lamina travels superficial to the lateral collateral ligament and ends posteriorly at the fabellofibular ligament.

  1. Deeper lamina of deep layer
  2. The deeper lamina travels deep to the lateral collateral ligament, passes along and attaches to the edge of the lateral meniscus, giving rise to the coronary ligament and ultimately reaching the arcuate ligament.

https://youtube.com/shorts/Az4s4q6NQLA



- YouTube



www.youtube.com

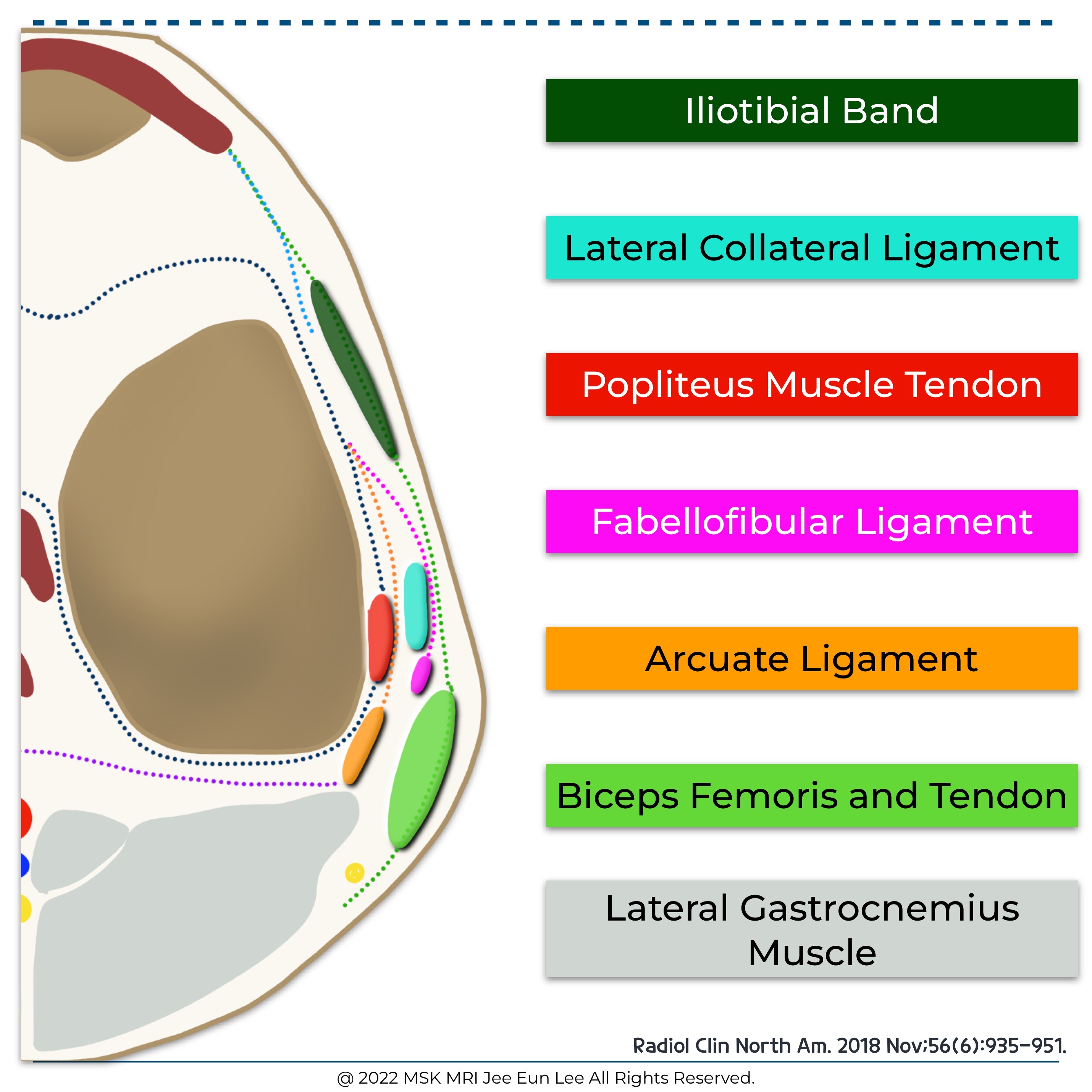

Injury to the arcuate, fabellofibular, or popliteofibular ligament

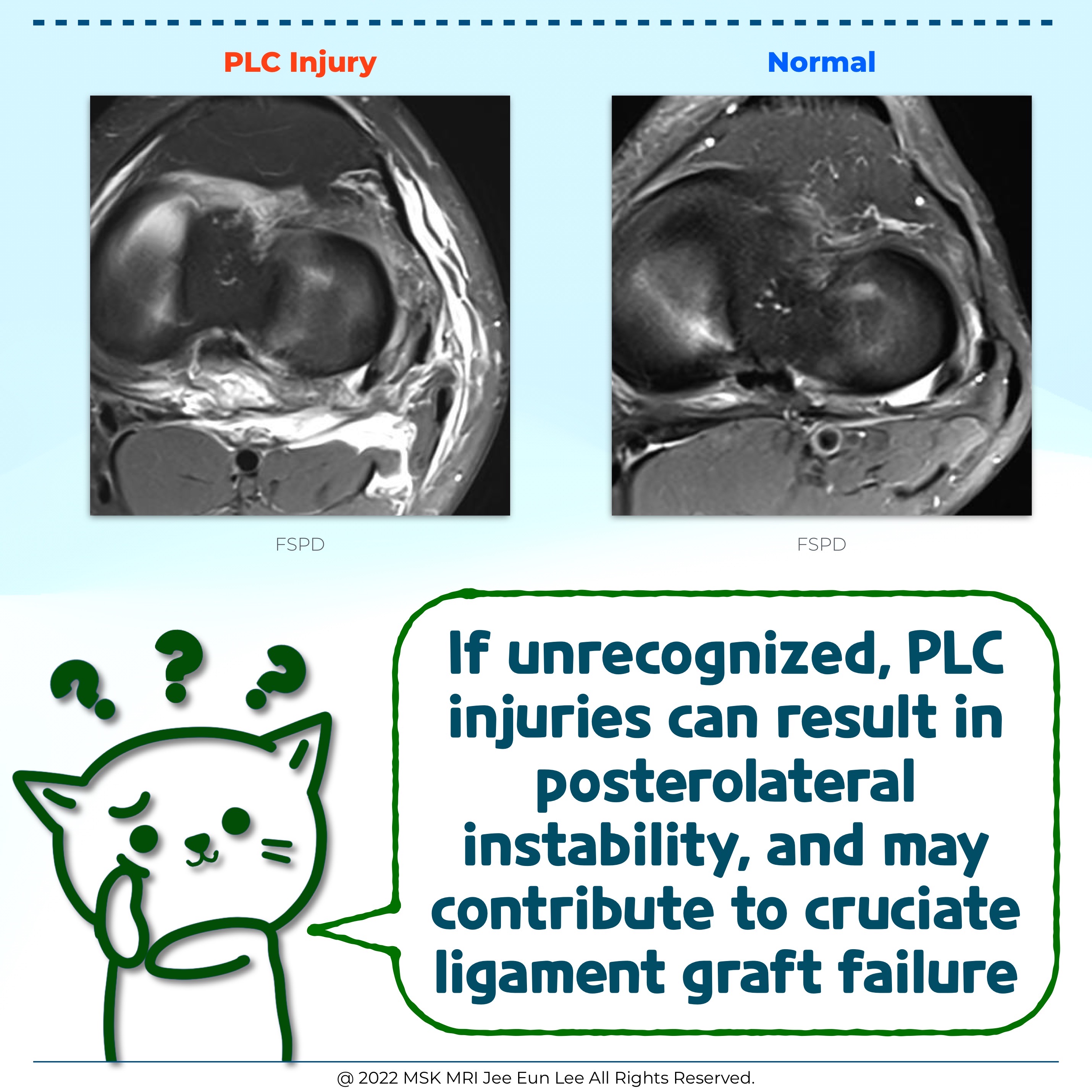

If edema localizes to the soft tissues of the knee within the PLC, in particular along the superficial aspect of the popliteus, with an otherwise intact biceps femoris, fibular collateral ligament, and popliteus, an injury to the arcuate, fabellofibular, or popliteofibular ligament may be present, especially if these structures cannot be reliably visualized and cleared

The investigators concluded that although MR imaging assessment of the PLC injury is challenging due to anatomic complexity, the larger structures are easy to evaluate with standard MR technique, and direct visualization of small structure involvement on MRI is not necessary to report a clinically unstable PLC injury.

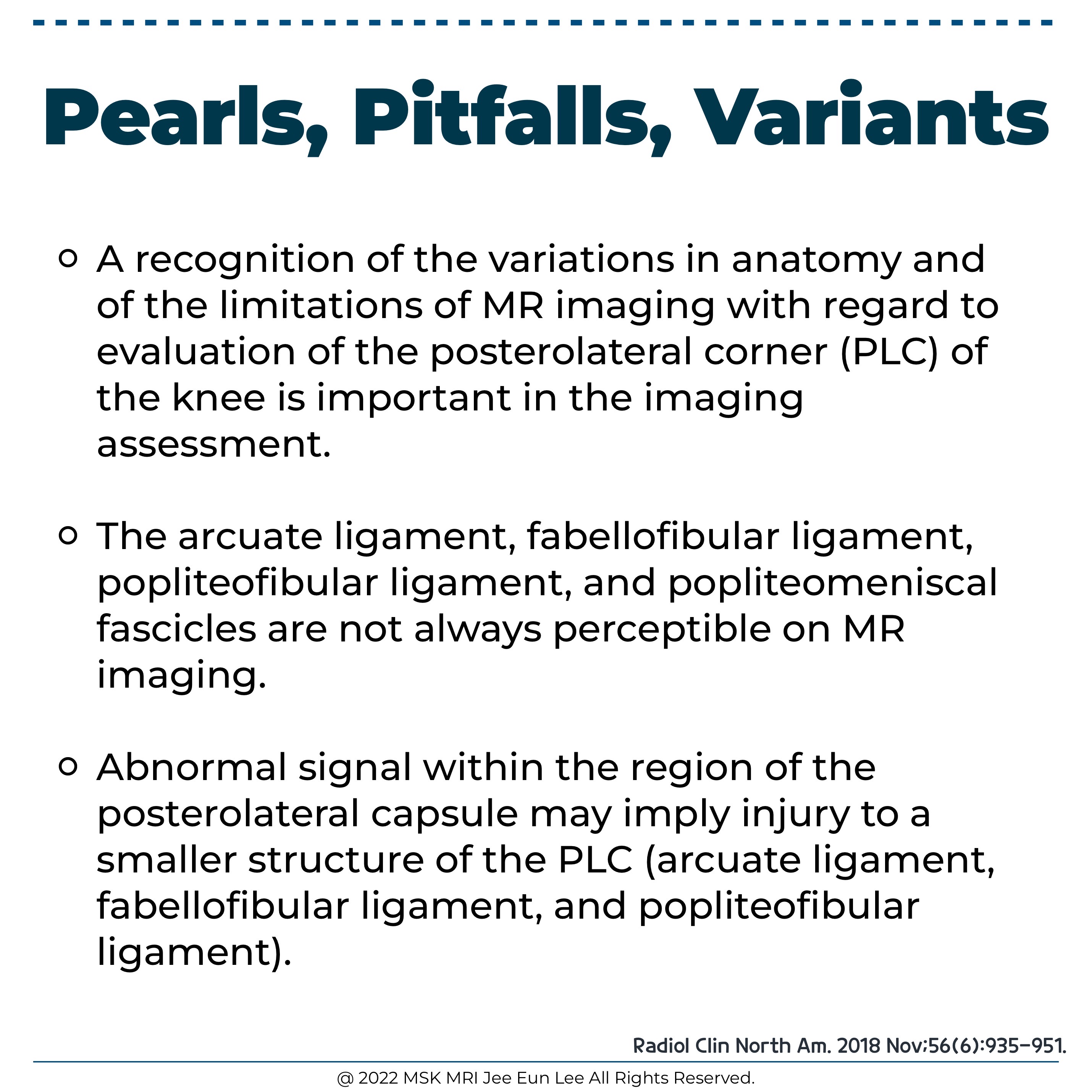

Pearls, Pitfalls, Variants

A recognition of the variations in anatomy and of the limitations of MR imaging with regard to the evaluation of the posterolateral corner (PLC) of the knee is important in the imaging assessment.

The arcuate ligament, fabellofibular ligament, popliteofibular ligament, and popliteomeniscal fascicles are not always perceptible on MR imaging.

An abnormal signal within the region of the posterolateral capsule may imply injury to a smaller structure of the PLC (arcuate ligament, fabellofibular ligament, and popliteofibular ligament).

Radiol Clin North Am. 2018 Nov;56(6):935-951.

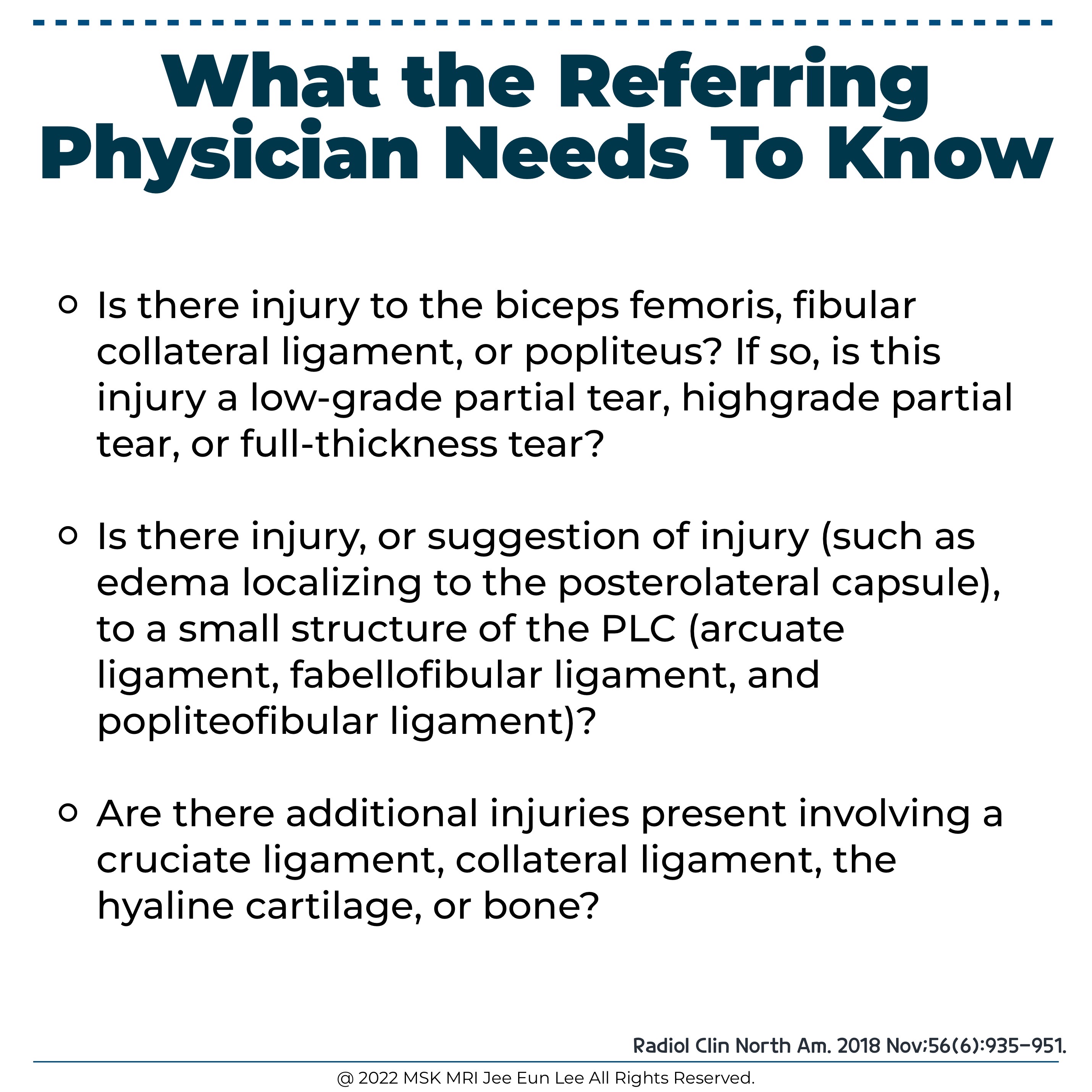

What the Referring Physician Needs To Know

Is there injury to the biceps femoris, fibular collateral ligament, or popliteus? If so, is this injury a low-grade partial tear, high grade partial tear, or full-thickness tear?

Is there an injury, or suggestion of injury (such as edema localizing to the posterolateral capsule), to a small structure of the PLC (arcuate ligament, fabellofibular ligament, and popliteofibular ligament)?

Are there additional injuries present involving a cruciate ligament, collateral ligament, hyaline cartilage, or bone?

Radiol Clin North Am. 2018 Nov;56(6):935-951.
