Normal ACL on Sagittal Images

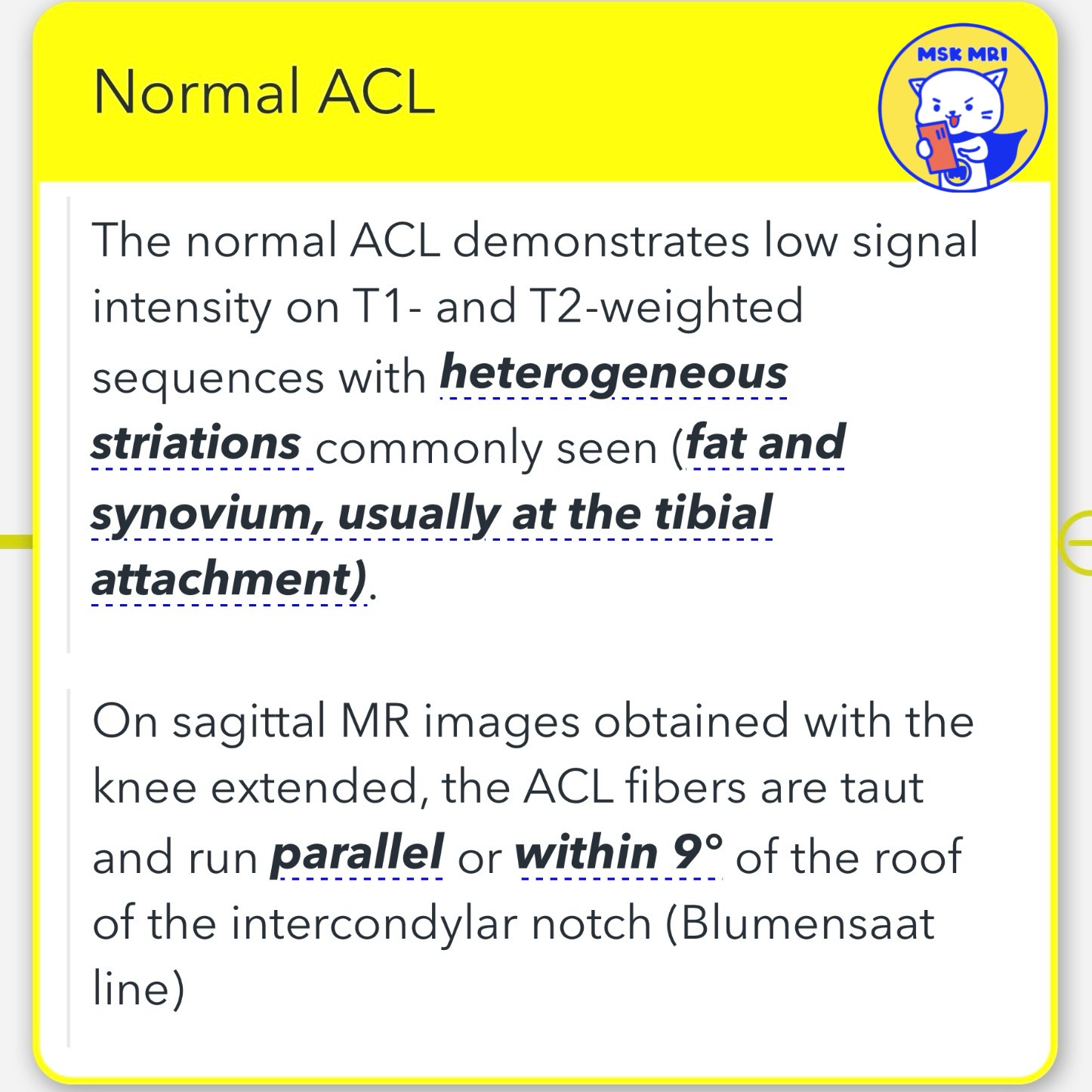

- Signal Intensity: The normal Anterior Cruciate Ligament (ACL) exhibits low signal intensity on both T1- and T2-weighted MRI sequences. Heterogeneous striations, which are commonly observed, are usually due to the presence of fat and synovium, especially at the tibial attachment.
- Sagittal MR Images with Extended Knee: When MR images are obtained with the knee extended, the ACL fibers appear taut. They run parallel to or within 9° of the Blumensaat line, which is the roof of the intercondylar notch.

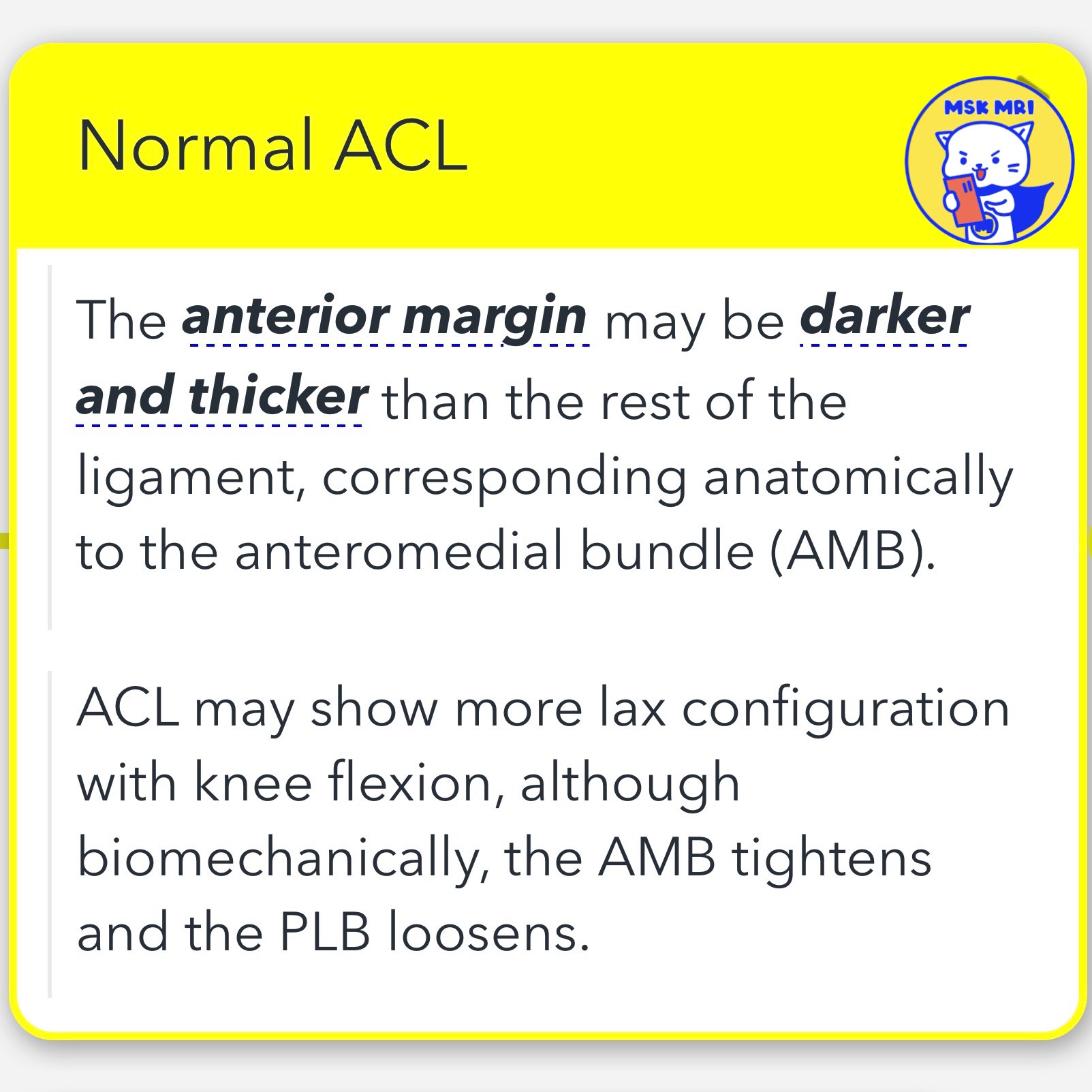

- Anatomical Considerations: The anterior margin of the ACL may appear darker and thicker than the remainder of the ligament. This characteristic corresponds anatomically to the ACL's anteromedial bundle (AMB).
- Knee Flexion: The ACL may demonstrate a more lax configuration with knee flexion. Biomechanically, the AMB tightens during this motion while the Posterolateral Bundle (PLB) loosens.
"Visualizing MSK Radiology: A Practical Guide to Radiology Mastery"
© 2022 MSK MRI Jee Eun Lee All Rights Reserved.
#VisualizingMSK #aclanatomy #ACL #lateralmeniscus
You may not distribute or commercially exploit the content.
Nor may you transmit it or store it on any other website or other forms of the electronic retrieval system.
