(Fig 5-A.03) T2 Anisotropy and Magic Angle Effect

https://youtu.be/AOPIdkNKwrg

https://youtu.be/YyQWPfrVkxI



==============================================

⬇️✨⬇️🎉⬇️🔥⬇️📚⬇️

Click the link to purchase on Amazon 🎉📚

==============================================

🎥 Check Out All Videos at Once! 📺

👉 Visit Visualizing MSK Blog to explore a wide range of videos! 🩻

https://visualizingmsk.blogspot.com/?view=magazine

📚 You can also find them on MSK MRI Blog and Naver Blog! 📖

https://mskmri.tistory.com/

https://blog.naver.com/mskmri

https://www.instagram.com/msk_mri/

Click now to stay updated with the latest content! 🔍✨

==============================================

📌 Understanding T2 Anisotropy, Magic Angle Effect, and Chemical Shift Artifacts

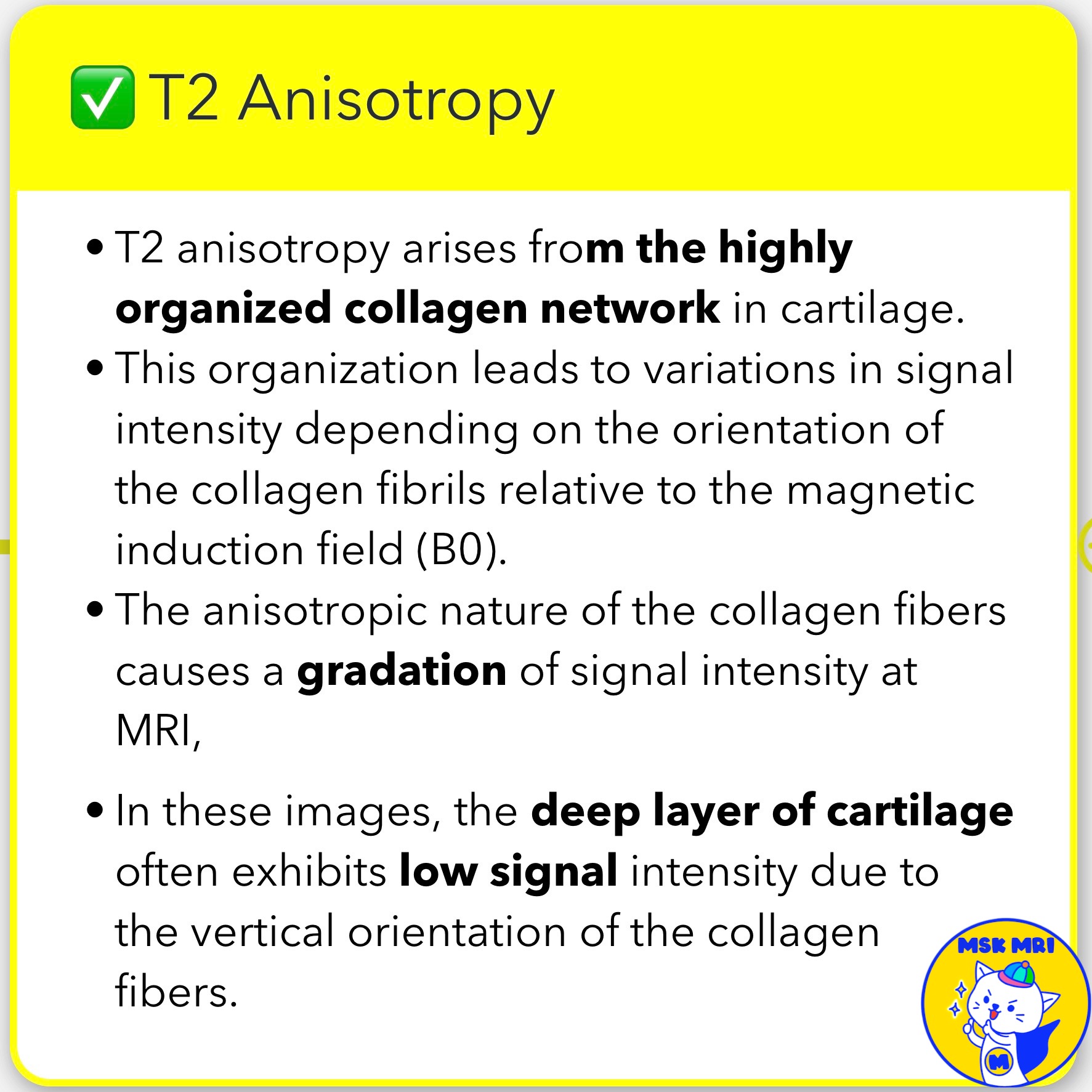

✅ T2 Anisotropy

• T2 anisotropy arises from the highly organized collagen network in cartilage.
• This organization leads to variations in signal intensity depending on the orientation of the collagen fibrils relative to the magnetic induction field (B0).
• The anisotropic nature of the collagen fibers causes a gradation of signal intensity at MRI, primarily observed in intermediate-weighted or T2-weighted sequences.
• In these images, the deep layer of cartilage often exhibits low signal intensity due to the vertical orientation of the collagen fibers.

---

✅ Magic Angle Effect

• The magic angle effect significantly influences the appearance of cartilage on MRI.
• When collagen fibrils are oriented at approximately 55° to the main magnetic field (B0), signal intensity increases.
• This effect is more pronounced in the deep zones of cartilage where the fibrils are parallel to B0, leading to rapid T2 decay and consequently lower signal intensity.
• This phenomenon can cause regional variations in cartilage signal intensity, which can vary by more than 200% depending on the orientation to B0.

---

✅ Chemical Shift Artifacts

• Chemical shift artifacts occur at the interface between tissues with different chemical environments, such as the fat-containing medullary cavity and the bone plate.
• These artifacts can lead to an overestimation of the thickness of the subchondral bone plate and, therefore, the depth of cartilage lesions.
• The appearance of the bone plate in MRI is influenced by the receiver bandwidth; a decreased bandwidth can exacerbate chemical shift artifacts, which is often done to improve signal-to-noise ratios in T2-weighted sequences.
• Fat-suppression techniques can mitigate these artifacts by reducing or eliminating the fat signal.
