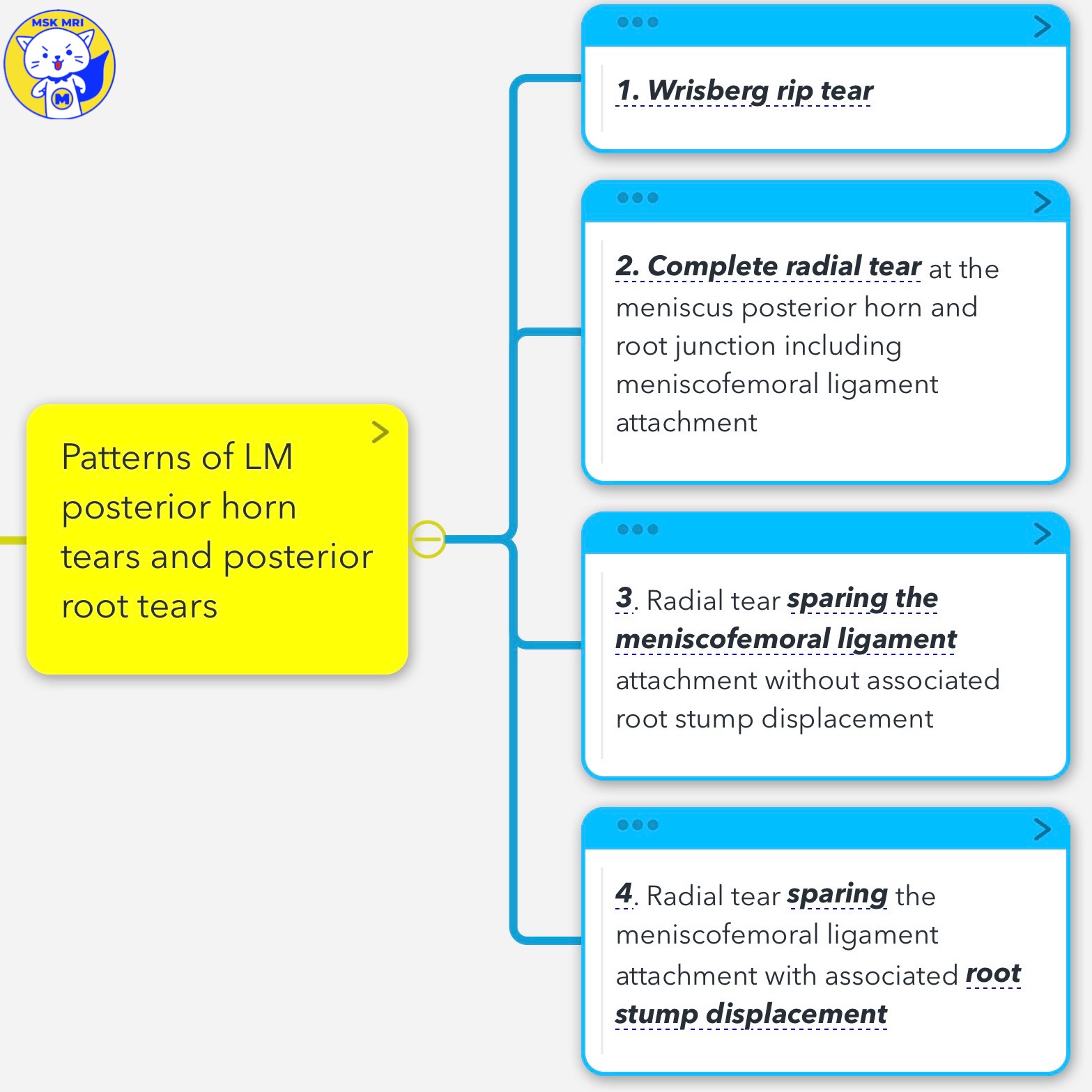

✅ Patterns of LM posterior horn tears and posterior root tears ✅
Radiographics. 2023 Jul;43(7):e220208

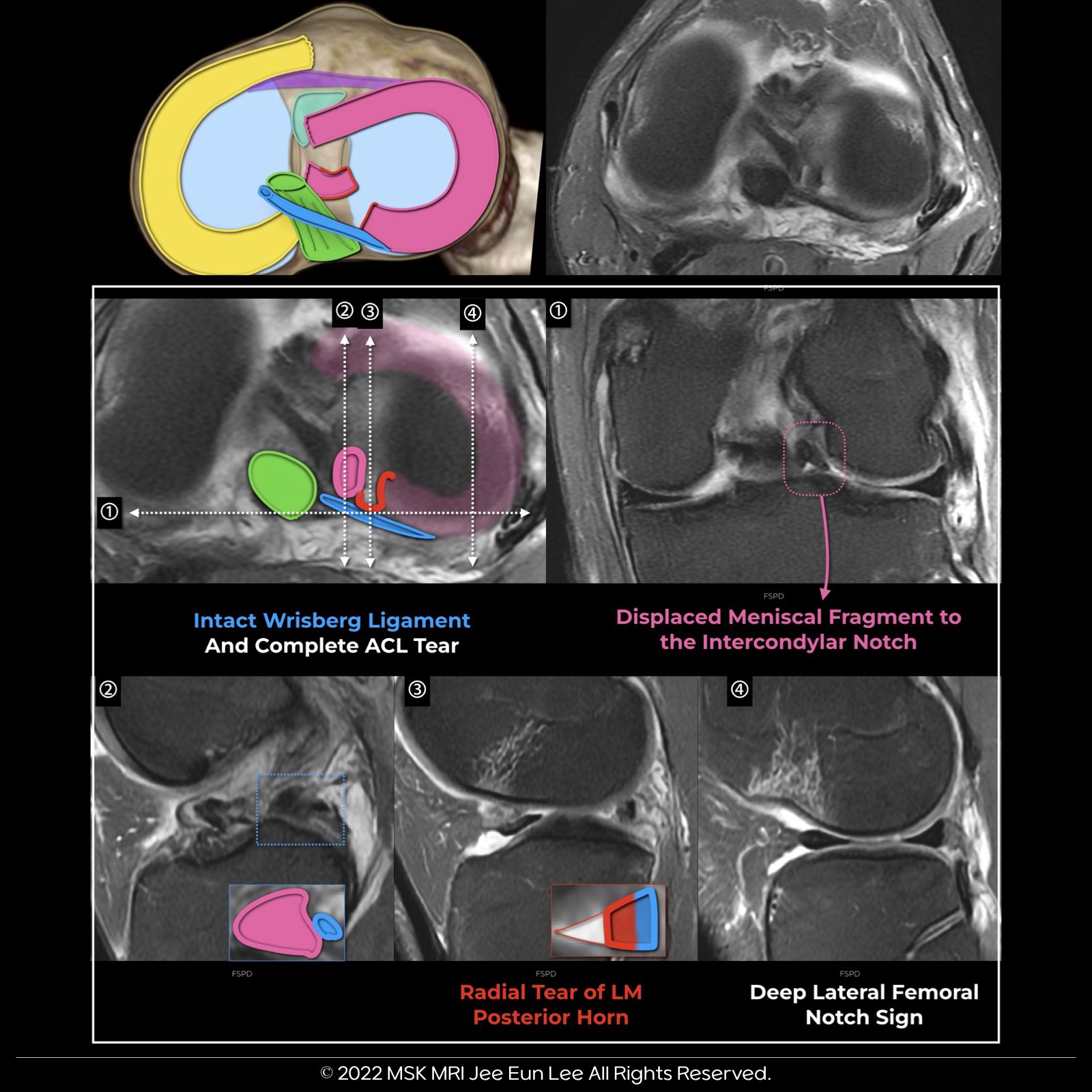

1. Wrisberg rip tear
2. Complete radial tear at the meniscus posterior horn and root junction, including meniscofemoral ligament attachment
3. Radial tear sparing the meniscofemoral ligament attachment without associated root stump displacement

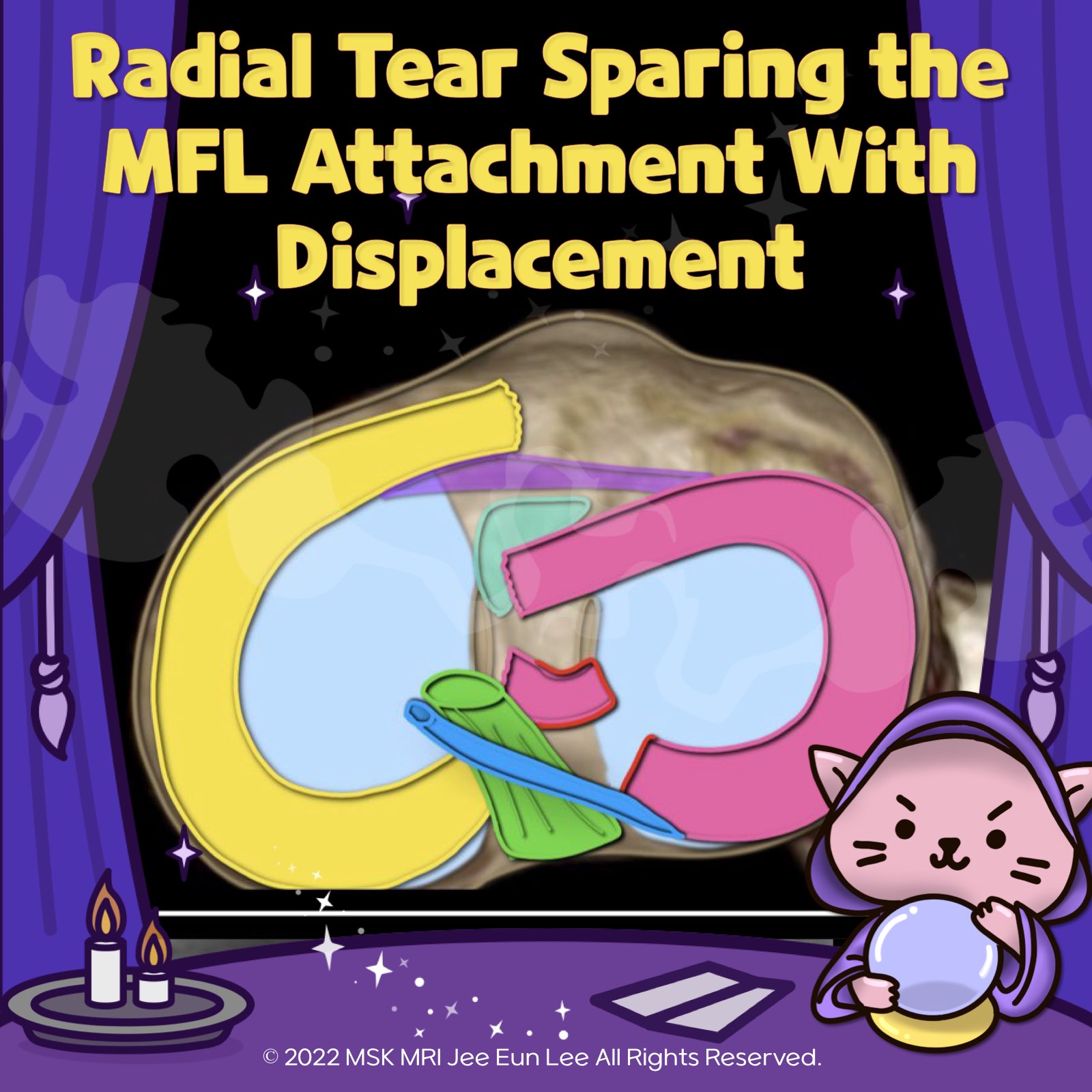

4. Radial tear sparing the meniscofemoral ligament attachment with associated root stump displacement
- → Less commonly, the root stump can become inverted into the intercondylar notch, or a T-shaped oblique radial tear (with radial and longitudinal components) may involve the root region
"Visualizing MSK Radiology: A Practical Guide to Radiology Mastery"
© 2022 MSK MRI Jee Eun Lee All Rights Reserved.
#VisualizingMSK #MeniscofemoralLigament #LateralMeniscus #ACLinjuries #MeniscalTears #MFLs
