★ Healed vs. Unhealed Meniscal Tears ★

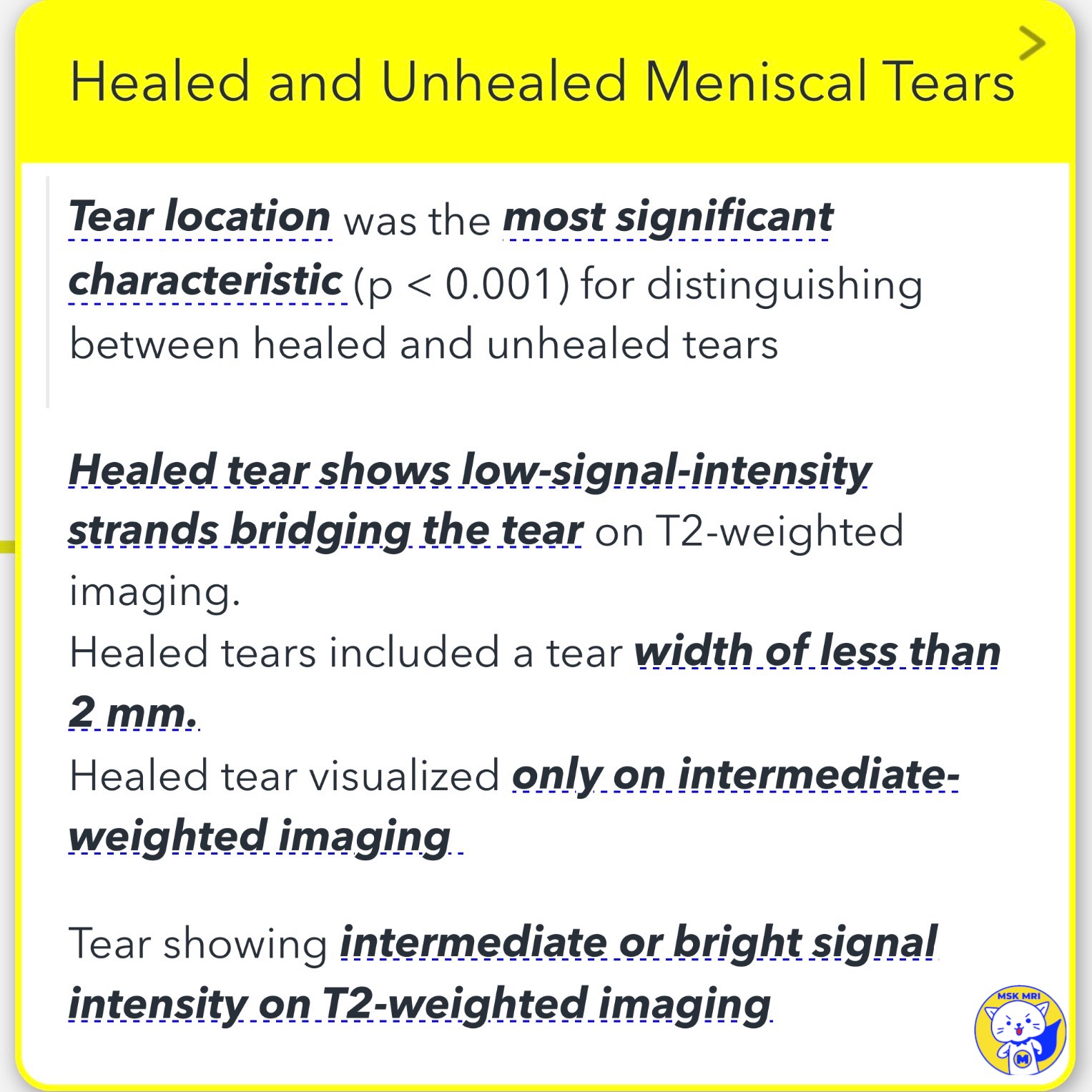

📌 Distinguishing Factors
- Tear location is a significant indicator for differentiating between healed and unhealed tears
1️⃣ Healed Tears

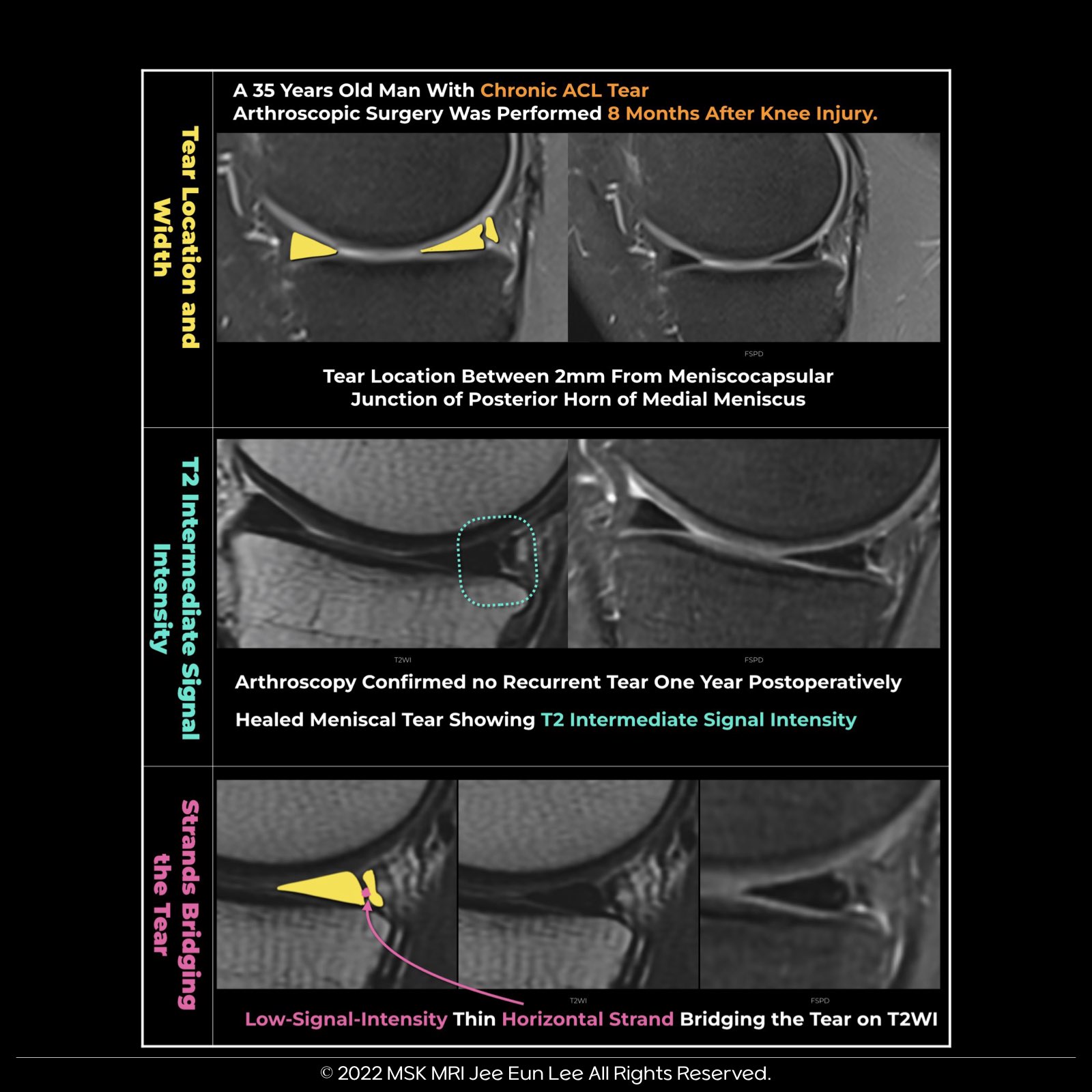

- Display low-signal-intensity strands bridging the tear on T2-weighted imaging.
- Characterized by a tear width of less than 2 mm.
- Visible only on intermediate-weighted imaging.
2️⃣ Unhealed Tear
- Tears may show intermediate or bright signal intensity on T2-weighted imaging.
"Visualizing MSK Radiology: A Practical Guide to Radiology Mastery"
© 2022 MSK MRI Jee Eun Lee All Rights Reserved.
