(Fig 4-A.13) Supratrochlear Spur in Trochlear Dysplasia

https://youtu.be/1g7fI8qinVU?si=YkZRzeg0m604uPjj

https://youtu.be/vzxclU_34OI



==============================================

🎥 Check Out All Videos at Once! 📺

👉 Visit Visualizing MSK Blog to explore a wide range of videos! 🩻

https://visualizingmsk.blogspot.com/?view=magazine

📚 You can also find them on MSK MRI Blog and Naver Blog! 📖

https://mskmri.tistory.com/

https://blog.naver.com/mskmri

https://www.instagram.com/msk_mri/

Click now to stay updated with the latest content! 🔍✨

==============================================

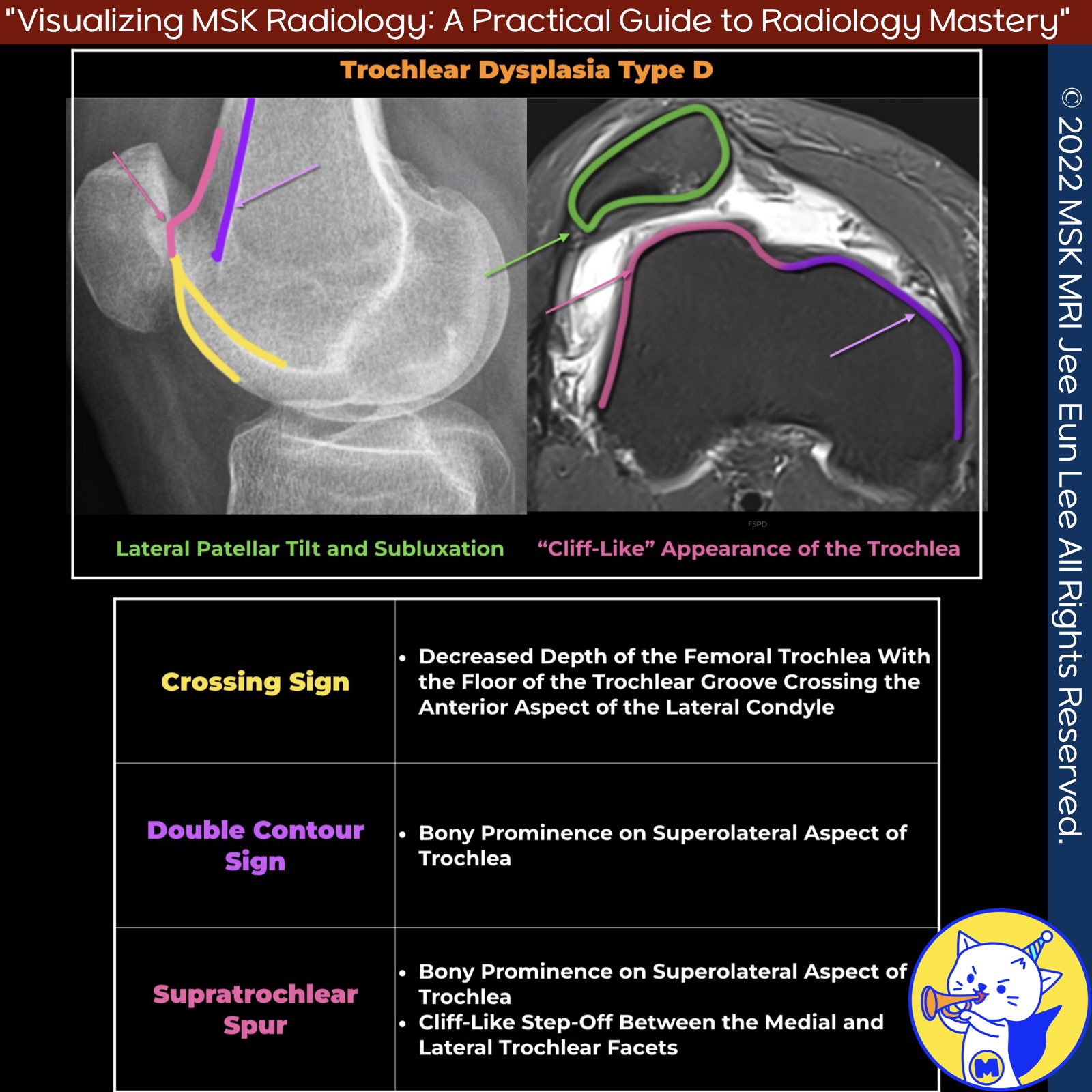

📌  Dejour et al. Classification of Trochlear Dysplasia Type D Findings

✅  In Type D, three main findings



1️⃣ The Crossing Sign

• The crossing sign indicates the presence of trochlear dysplasia when the sulcus line crosses or lies anterior to the femoral condyle lines.



2️⃣ The Double Contour Sign

• The double contour sign results from asymmetric trochlear facets, with a high lateral facet and hypoplastic medial facet, forming an obliquely oriented articular surface with the patella.

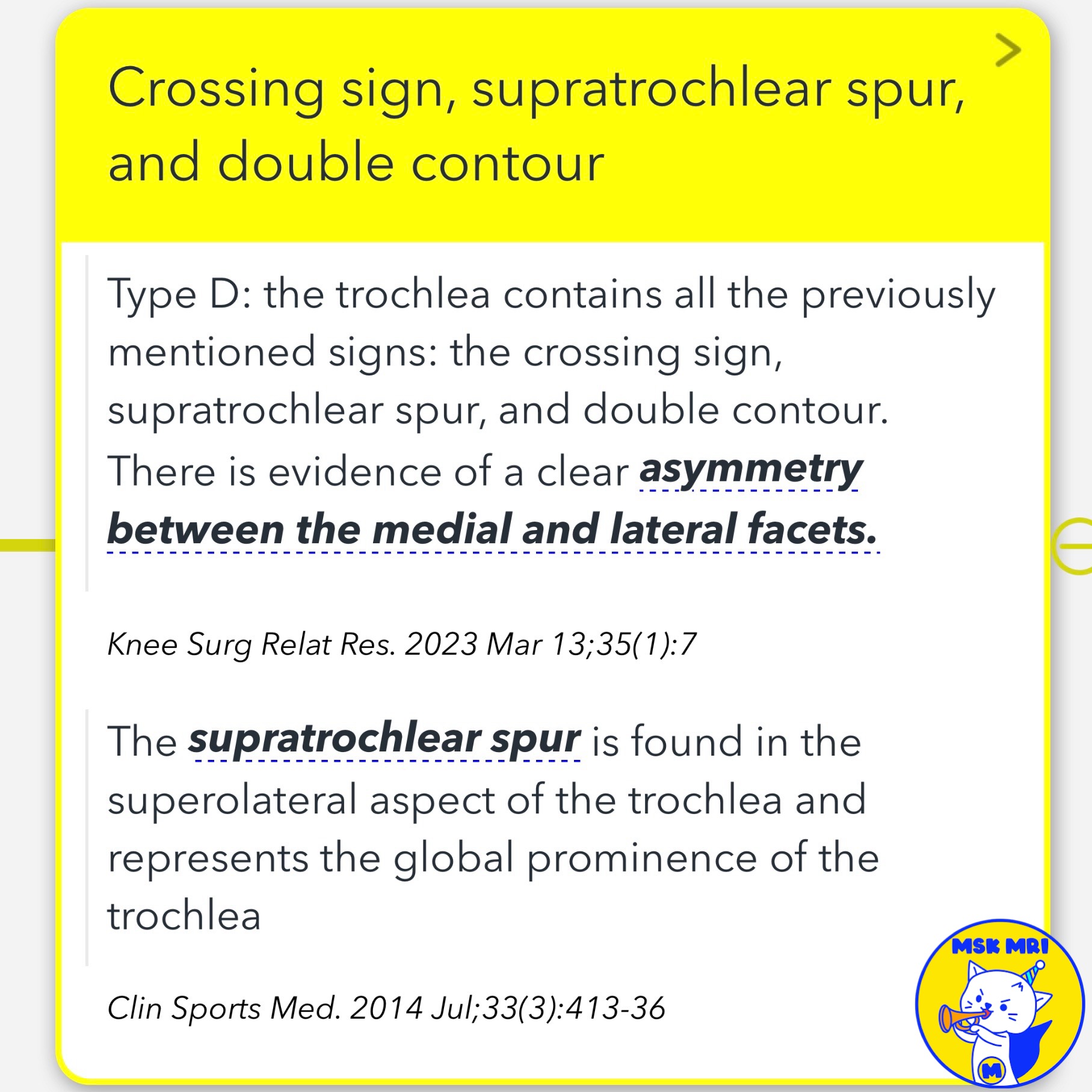

3️⃣ The Supratrochlear Spur

•  The supratrochlear spur is found in the superolateral aspect of the trochlea and represents the global prominence of the trochlea, giving a "cliff-like" appearance.



✅ Patellar Comparison

•  In a normal knee, note that the lateral facet of the patella projects anterior to the median ridge, representing the normal relationship.
• However, in the case of lateral patellar dislocation, the lateral facet of the patella is seen in a more posterior aspect relative to the median ridge.



➡️ References:

Knee Surg Relat Res. 2023 Mar 13;35(1):7

Clin Sports Med. 2014 Jul;33(3):413-36

MRI Web Clinic – June 2021 Tissue Delamination



"Visualizing MSK Radiology: A Practical Guide to Radiology Mastery"
