(Fig 4-B.03) Retropatellar Articular Surface and Wiberg Classification

https://youtu.be/w9ZABNJm5AA

https://youtu.be/w63GyfUeIyw

==============================================

🎥 Check Out All Videos at Once! 📺

👉 Visit Visualizing MSK Blog to explore a wide range of videos! 🩻

https://visualizingmsk.blogspot.com/?view=magazine

📚 You can also find them on MSK MRI Blog and Naver Blog! 📖

https://mskmri.tistory.com/

https://blog.naver.com/mskmri

https://www.instagram.com/msk_mri/

Click now to stay updated with the latest content! 🔍✨

==============================================

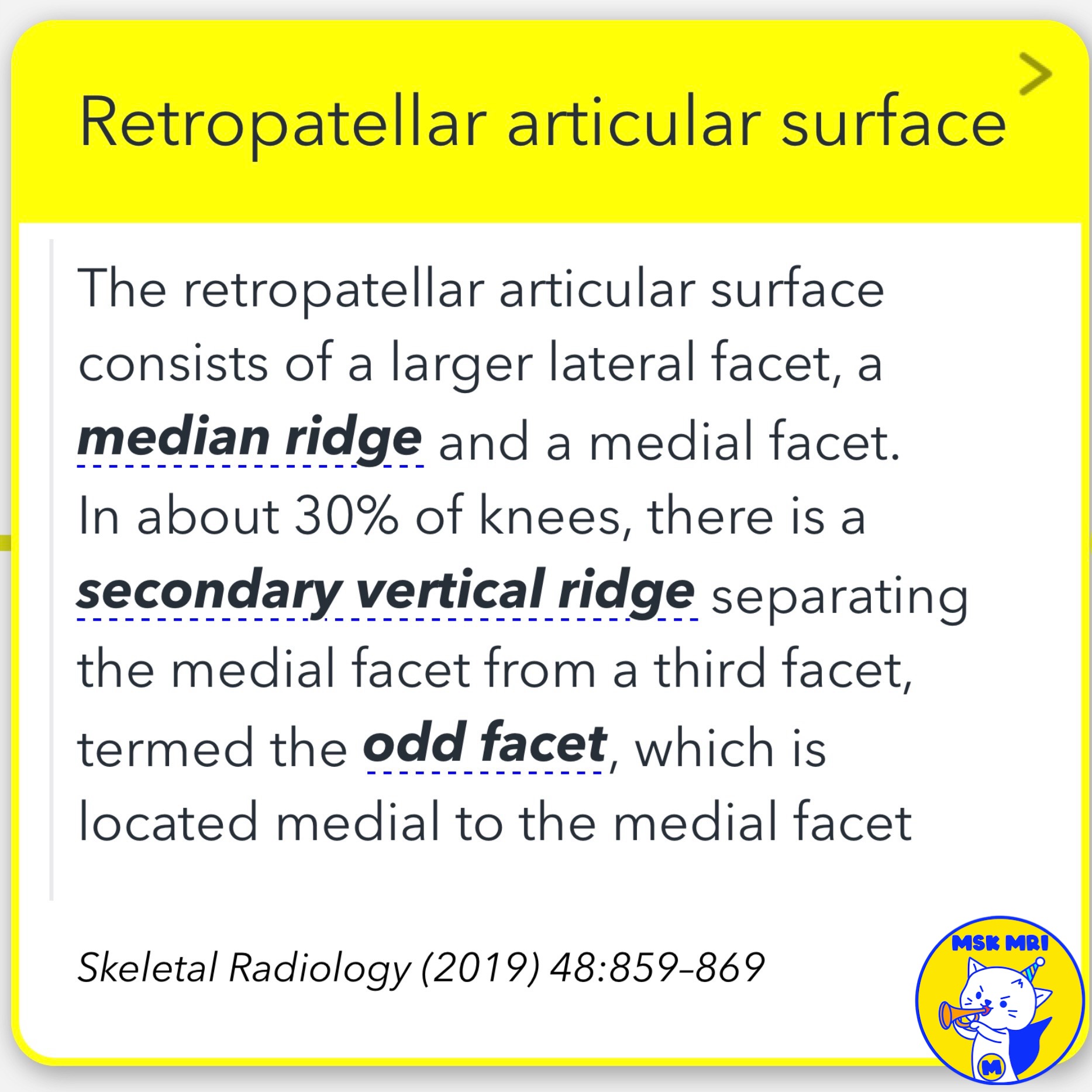

📌 The Retropatellar Articular Surface

✅  Components:

• Larger lateral facet
• Median ridge
• Medial facet
• Odd facet (30% of knees) - medial to medial facet

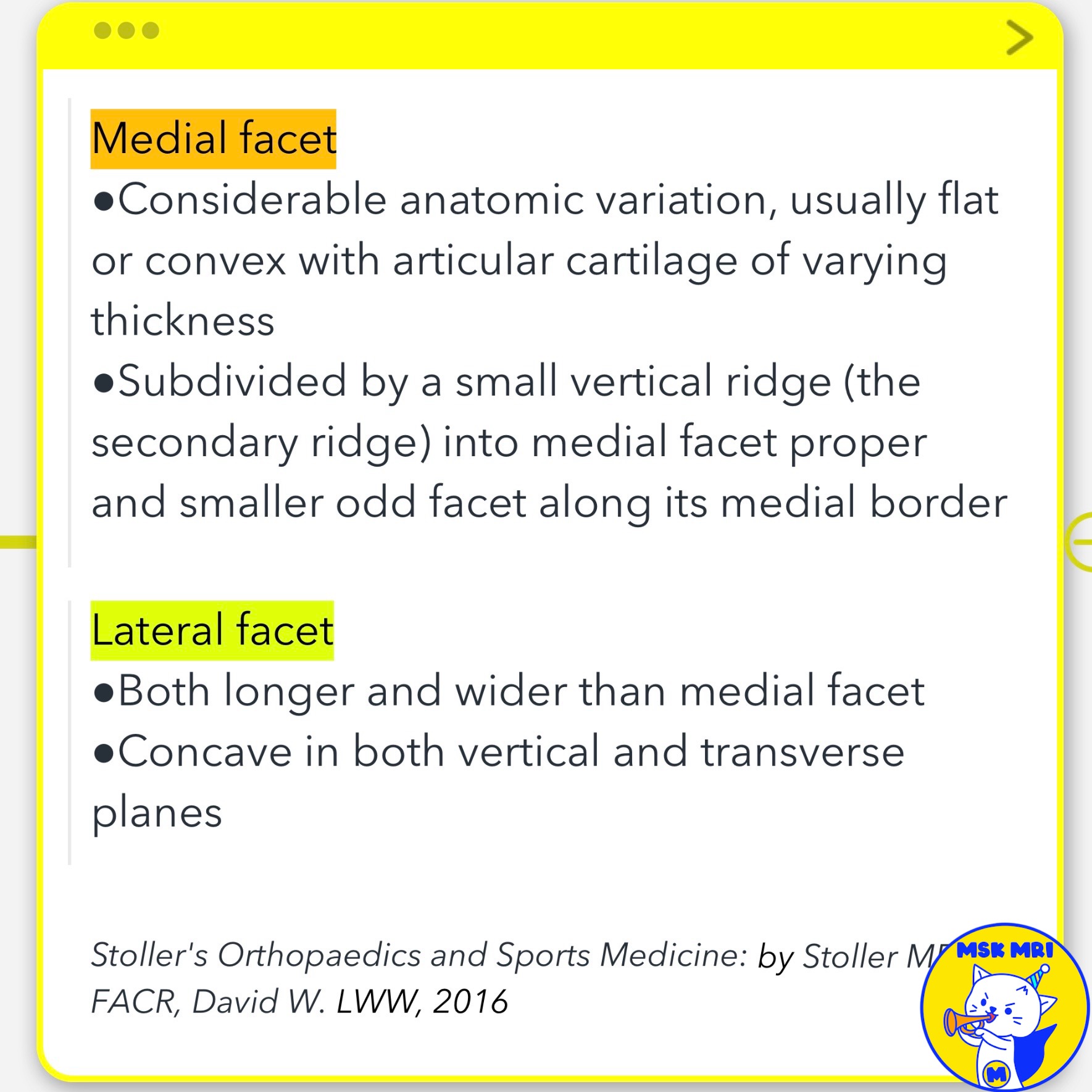

1️⃣ Medial Facet:

• Flat or convex shape
• Variable cartilage thickness
• Sometimes divided into medial facet proper and odd facet by vertical ridge



2️⃣ Lateral Facet:

• Longer and wider than medial facet
• Concave in vertical and transverse planes

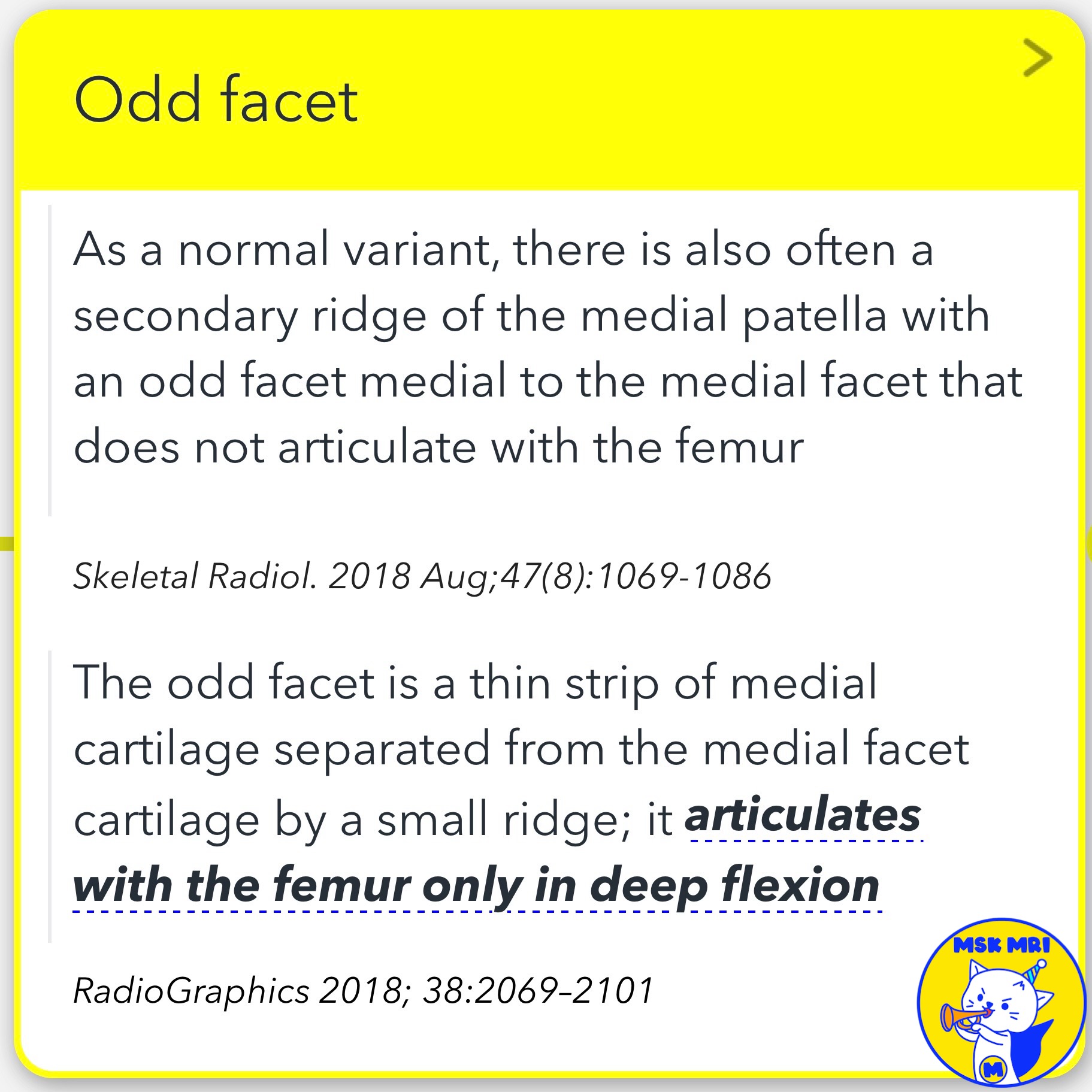

3️⃣ Odd Facet:

• Normal variant
• Thin cartilage strip separated from medial facet by ridge
• Articulates with femur only in deep flexion

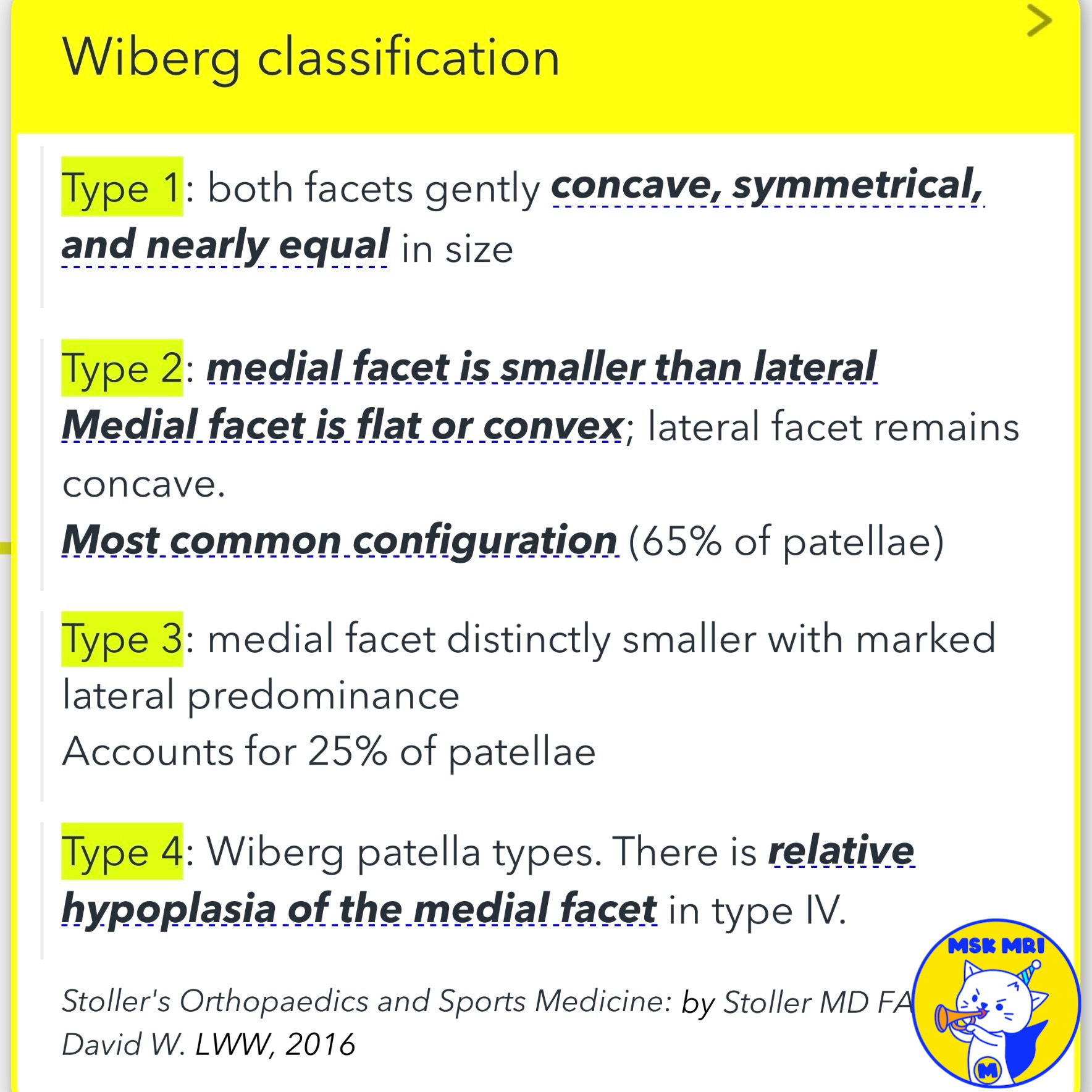

📌  The Wiberg Classification

• Type 1: Both facets gently concave, symmetrical, nearly equal size
• Type 2: Medial facet smaller than lateral facet Medial - flat or convex Lateral - concave Most common (65%)
• Type 3: Medial facet distinctly smaller than lateral facet Marked lateral predominance (25%)
• Type 4: Relative hypoplasia of medial facet



References:

Skeletal Radiology (2019) 48:859–869

Stoller's Orthopaedics and Sports Medicine: by Stoller MD FACR, David W. LWW, 2016

Skeletal Radiol. 2018 Aug;47(8):1069-1086

RadioGraphics 2018; 38:2069–2101
